DTM04-4P | DEUTSCH

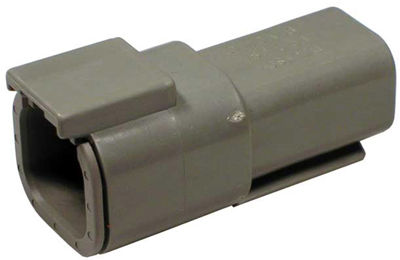

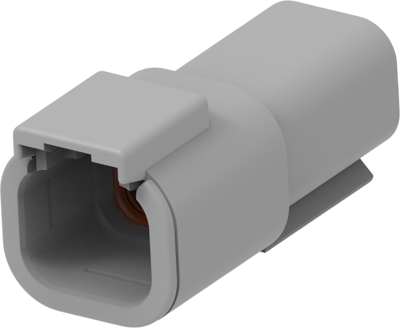

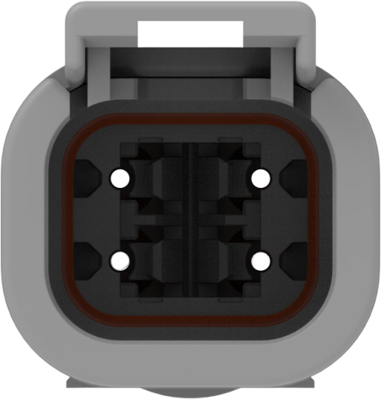

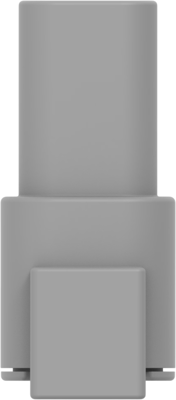

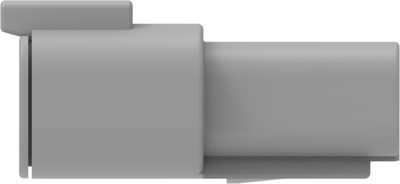

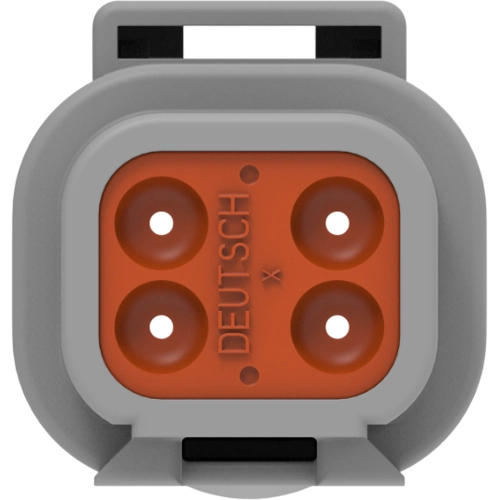

Socket, 4 pole, straight, 2 rows, gray, DTM04-4P
Unit Price (€ / pc.)
3.8675 € *
Available in 5 Days: 454 pcs. - if ordered today
Total Price:
3.87 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8675 €
10 pcs.
3.5938 €
25 pcs.
3.3558 €
50 pcs.
3.0464 €
*incl. VAT plus shipping costs
Subject to prior sale
Sealed connector, DTM04-4P, DEUTSCH
The DTM04-4P is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers solutions to your smaller wire gauge applications. This product line was developed to fill the need for lower amperage, multipin connector.
Features
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedge locks confirm contact alignment and retention
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4.19 mm | |
| Connection | crimp connection | |
| Contact type | socket | |
| Version | straight | |
| Rated current | 7.5 A | |
| Colour | gray | |
| Rated voltage | 250 V | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
