DTM04-4P-E004 | DEUTSCH

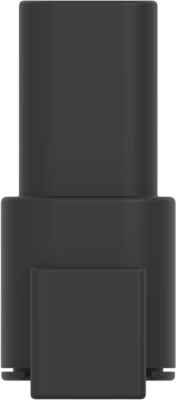

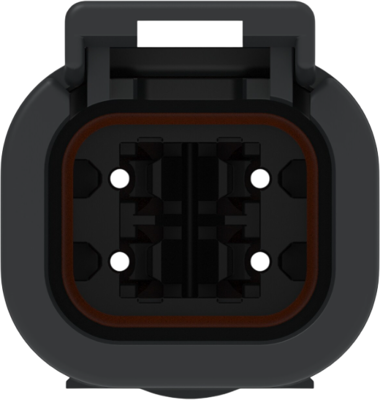

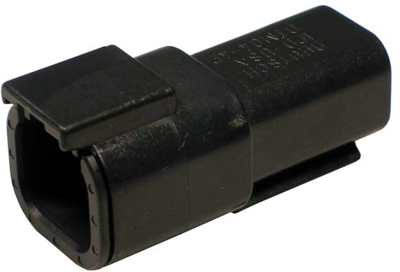

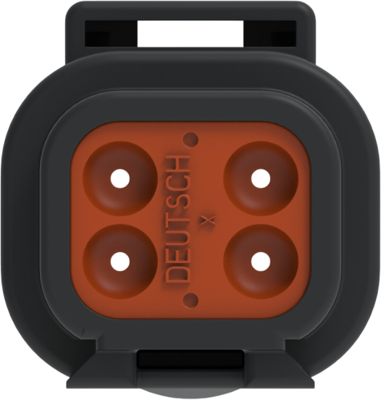

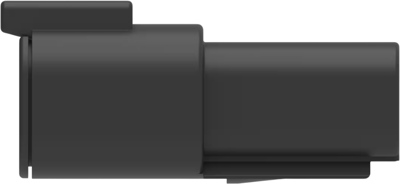

Socket, equipped, 4 pole, straight, 2 rows, black, DTM04-4P-E004
Unit Price (€ / pc.)
3.8556 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
10 pcs.
3.5819 €
25 pcs.
3.3201 €
50 pcs.
3.1892 €
*incl. VAT plus shipping costs
Subject to prior sale
Housing terminals, DTM04-4P-E004, DEUTSCH
Housing for male terminals, Wire-to-wire, 4 Position, 4.19 mm Centerline, Sealable, Black, Wire & cable, Power & signal, Hybrid
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Rated voltage | 250 V | |
| Type of locking | Yes | |
| Version | straight | |
| Pin number | 4 pole | |
| Contact type | socket | |
| Grid | 4.19 mm | |
| Rated current | 7.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
| Date of RoHS guidelines | 3/31/15 |
