DTM04-2P | DEUTSCH

Socket, 2 pole, straight, 1 row, gray, DTM04-2P

Order No.: 72P2668
EAN: 4099889508147
MPN:
DTM04-2P
Series: DTM

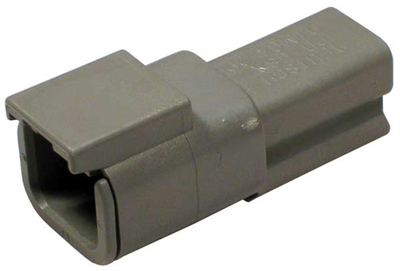

DTM04-2P DEUTSCH Automotive Power Connectors Image 1

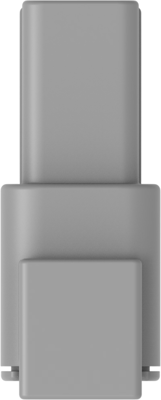

DTM04-2P DEUTSCH Automotive Power Connectors Image 2

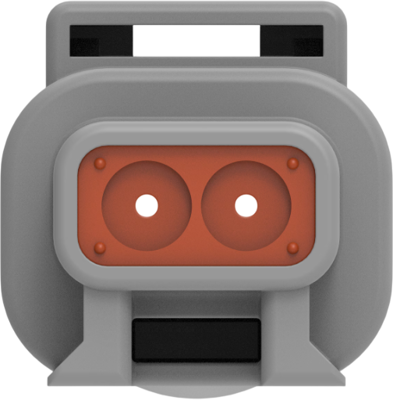

DTM04-2P DEUTSCH Automotive Power Connectors Image 3

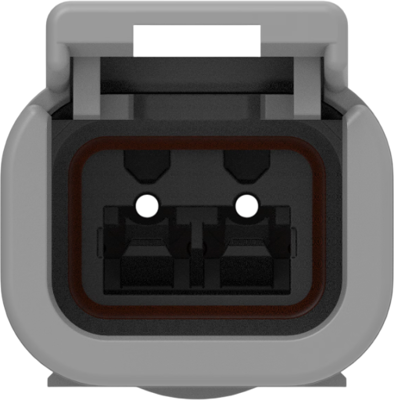

DTM04-2P DEUTSCH Automotive Power Connectors Image 4

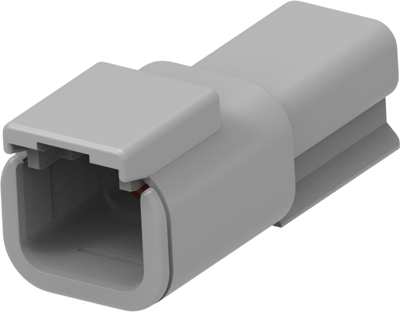

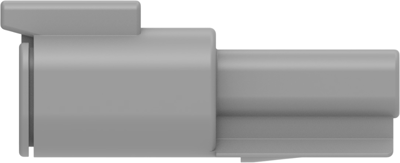

DTM04-2P DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.2844 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
3.28 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2844 €
10 pcs.
2.9869 €
50 pcs.
2.6894 €
100 pcs.
2.4276 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DTM04-2P, DEUTSCH

The DTM04-2P is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers solutions to your smaller wire gauge applications. This product line was developed to fill the need for lower amperage, multipin connector.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Version straight
Colour gray
Type of locking Yes
Rated voltage 250 V
Pin number 2 pole
Connection crimp connection
Grid 4.19 mm
Number of rows 1
Rated current 7.5 A
Contact type socket
Logistics
Customs tariff number 85366990
Country of origin MX
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
