DTM04-12PB | DEUTSCH

Socket, 12 pole, straight, 2 rows, black, DTM04-12PB

Order No.: 72P2666
EAN: 4099889508123
MPN:
DTM04-12PB
Series: DTM

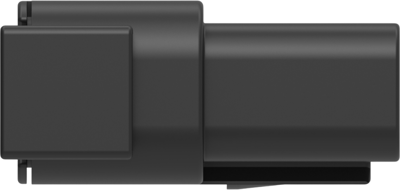

DTM04-12PB DEUTSCH Automotive Power Connectors Image 1

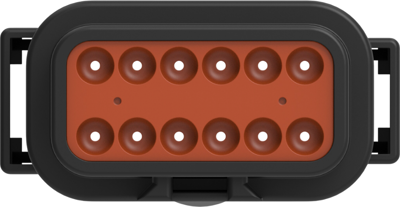

DTM04-12PB DEUTSCH Automotive Power Connectors Image 2

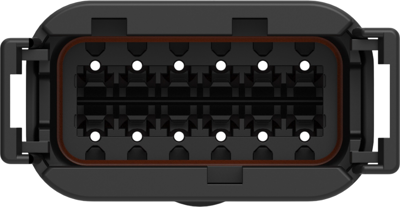

DTM04-12PB DEUTSCH Automotive Power Connectors Image 3

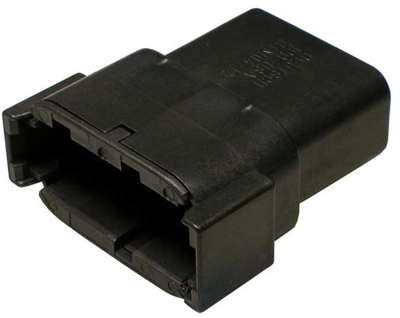

DTM04-12PB DEUTSCH Automotive Power Connectors Image 4

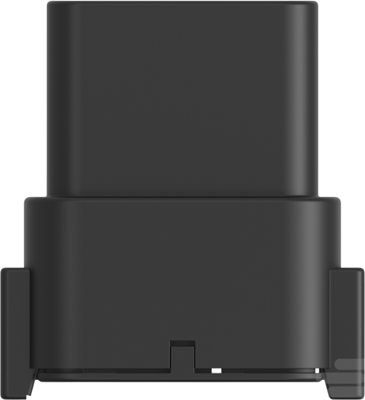

DTM04-12PB DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
7.6398 € *
Available in 5 Days: 515 pcs. - if ordered today
Total Price:
7.64 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6398 €
10 pcs.
7.0210 €
50 pcs.
6.3189 €
100 pcs.
5.6882 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DTM04-12PB, DEUTSCH

The DTM04-12PB is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers solutions to your smaller wire gauge applications. This product line was developed to fill the need for lower amperage, multipin connector.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 250 V
Pin number 12 pole
Connection crimp connection
Grid 4.19 mm
Number of rows 2
Rated current 7.5 A
Contact type socket
Logistics
Customs tariff number 85389099
Country of origin MX
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
