DTM04-08PA | DEUTSCH

Plug, equipped, 8 pole, straight, 2 rows, gray, DTM04-08PA

Order No.: 36P0056
EAN: 4099889892154
MPN:
DTM04-08PA
Series: DTM

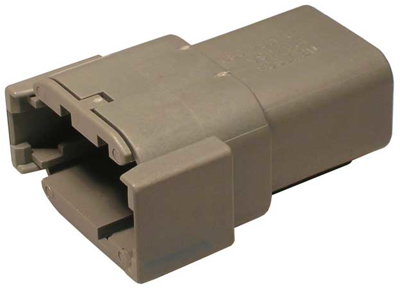

DTM04-08PA DEUTSCH Automotive Power Connectors Image 1
DTM04-08PA DEUTSCH Automotive Power Connectors Image 2
DTM04-08PA DEUTSCH Automotive Power Connectors Image 3
DTM04-08PA DEUTSCH Automotive Power Connectors Image 4
DTM04-08PA DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
8.1039 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
2 pcs.
8.1039 €

Housing terminals, DTM04-08PA, DEUTSCH

Housing for male terminals, Wire-to-wire, 8 Position, 4.19 mm Centerline, Sealable, Gray, Wire & cable, Power & signal, Hybrid

Technical specifications
Number of rows 2
Grid 4.19 mm
Pin number 8 pole
Connection crimp connection
Type of locking Yes
Colour gray
Rated current 7.5 A
Additional parts equipped
Contact type plug
Version straight
Rated voltage 250 V
Logistics
Customs tariff number 85389099
Compliance
SVHC free No
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
RoHS conform Yes
Date of RoHS guidelines 3/31/15
