DTHD04-1-4P | DEUTSCH

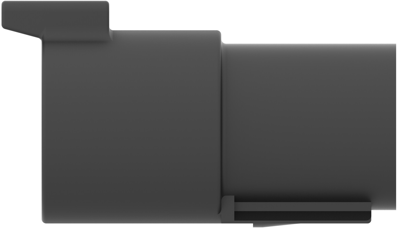

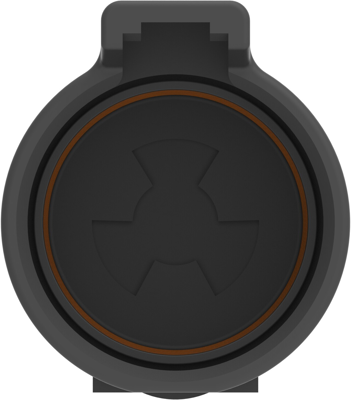

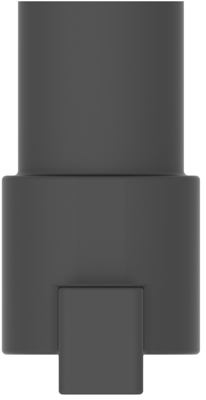

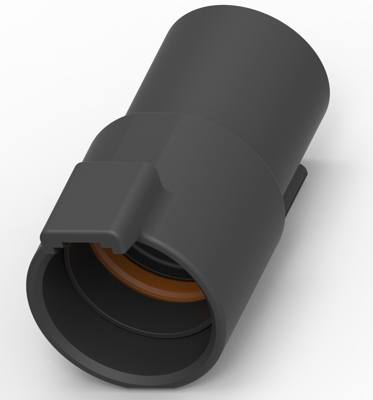

Socket, 1 pole, straight, black, DTHD04-1-4P
Unit Price (€ / pc.)
10.1745 € *
Available in 5 Days: 750 pcs. - if ordered today
Total Price:
203.49 € *
Price list
Quantity
Price per unit*
20 pcs.
10.1745 €
50 pcs.
6.3427 €
*incl. VAT plus shipping costs
Subject to prior sale
Single terminal connector, DTHD04-1-4P, DEUTSCH
The DTHD04-1-4P is a single terminal connector for heavy duty applications. Easy to install, environmentally sealed and compact in size, it is a simple, field serviceable alternative to a splice.
Features
- 1 cavity arrangement
- Circular, thermoplastic housing
- Integrated latch for mating
Technical specifications
| Connection | crimp connection | |
| Rated voltage | 250 V | |
| Version | straight | |
| Type of locking | Yes | |
| Colour | black | |
| Contact type | socket | |
| Pin number | 1 pole | |
| Rated current | 100 A |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
