DT06-6S | DEUTSCH

Socket, 6 pole, straight, 2 rows, gray, DT06-6S

Order No.: 72P2648
EAN: 4099889508017
MPN:
DT06-6S
Series: DT

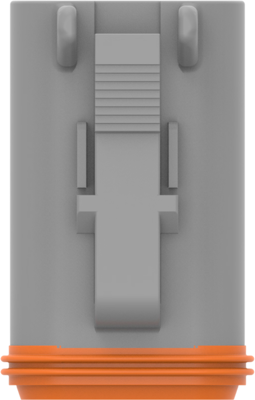

DT06-6S DEUTSCH Automotive Power Connectors Image 1

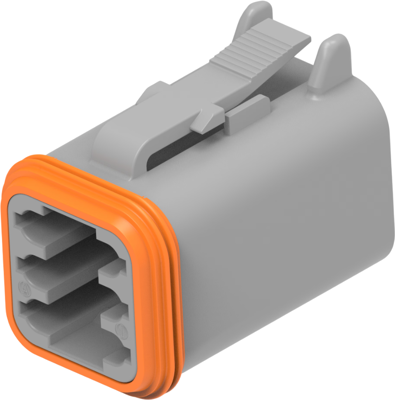

DT06-6S DEUTSCH Automotive Power Connectors Image 2

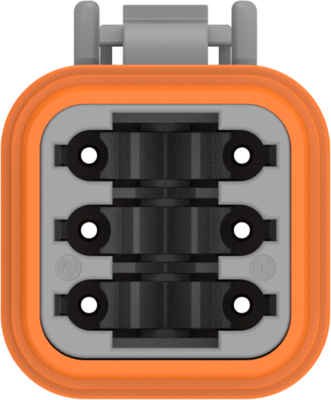

DT06-6S DEUTSCH Automotive Power Connectors Image 3

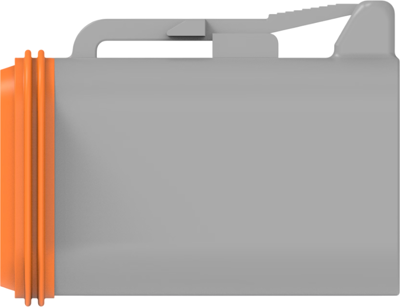

DT06-6S DEUTSCH Automotive Power Connectors Image 4

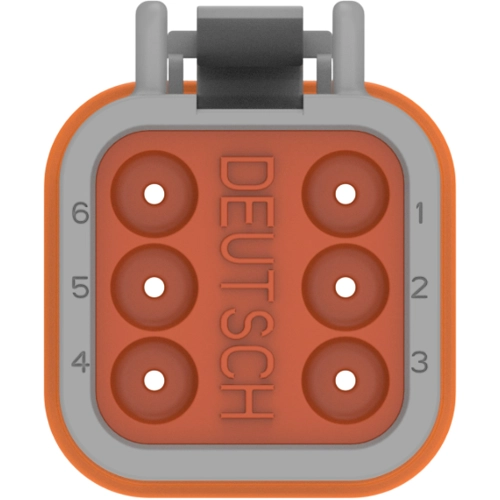

DT06-6S DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.9750 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
10 pcs.
2.7608 €
25 pcs.
2.5823 €
50 pcs.
2.3443 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DT06-6S, DEUTSCH

The DT06-6S is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Filter Property Value
Type of locking Yes
Version straight
Connection crimp connection
Number of rows 2
Contact type socket
Rated voltage 250 V
Pin number 6 pole
Grid 9.12 mm
Colour gray
Rated current 13 A
Logistics
Property Value
Country of origin US
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
RoHS conform Yes
