DT06-4S-E008 | DEUTSCH
Socket, 4 pole, straight, 2 rows, gray, DT06-4S-E008
Unit Price (€ / pc.)
9.1273 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
9.13 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1273 €
10 pcs.
8.3895 €
50 pcs.
7.5565 €
100 pcs.
6.7949 €
*incl. VAT plus shipping costs
Subject to prior sale

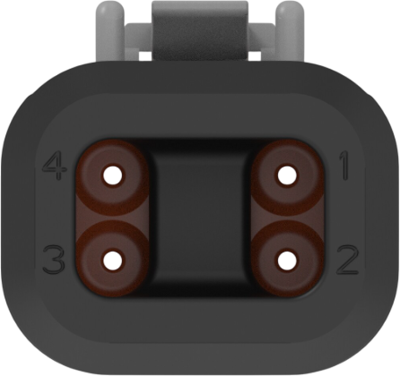

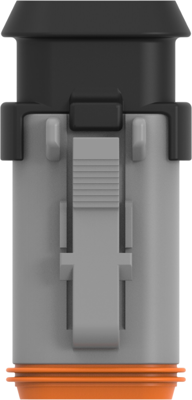

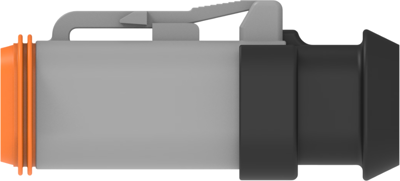

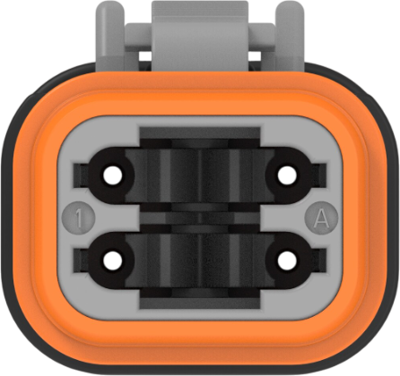

Sealed connector, DT06-4S-E008, DEUTSCH
The DT06-4S-E008 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.
Features
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedge locks confirm contact alignment and retention
Technical specifications
| Version | straight | |
| Colour | gray | |
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| Pin number | 4 pole | |
| Connection | crimp connection | |
| Grid | 4.45 mm | |
| Number of rows | 2 | |
| Rated current | 13 A | |
| Contact type | socket |
Download
Logistics
| Customs tariff number | 85389099 |
| Country of origin | MX |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
