DT06-3S-CE04 | DEUTSCH

Socket, 3 pole, straight, 2 rows, gray, DT06-3S-CE04

Order No.: 72P2638
EAN: 4099889506518
MPN:
DT06-3S-CE04
Series: DT

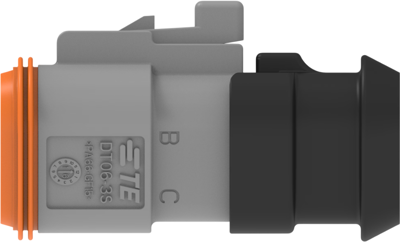

DT06-3S-CE04 DEUTSCH Automotive Power Connectors Image 1

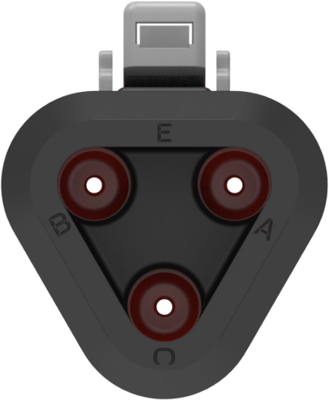

DT06-3S-CE04 DEUTSCH Automotive Power Connectors Image 2

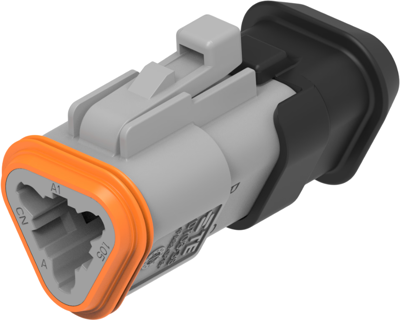

DT06-3S-CE04 DEUTSCH Automotive Power Connectors Image 3

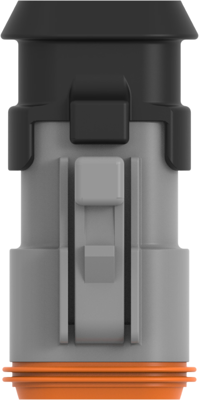

DT06-3S-CE04 DEUTSCH Automotive Power Connectors Image 4

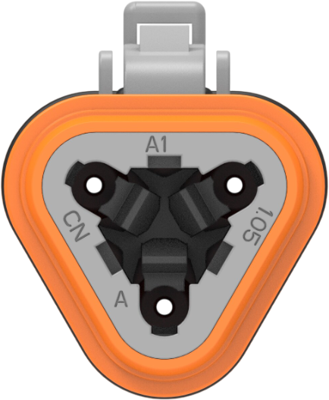

DT06-3S-CE04 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.2963 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2963 €
10 pcs.
3.0583 €
25 pcs.
2.8560 €
50 pcs.
2.5942 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DT06-3S-CE04, DEUTSCH

The DT06-3S-CE04 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Filter Property Value
Grid 10.01 mm
Connection crimp connection
Version straight
Pin number 3 pole
Contact type socket
Type of locking Yes
Number of rows 2
Colour gray
Rated current 13 A
Rated voltage 250 V
Logistics
Property Value
Customs tariff number 85389099
Country of origin US
Compliance
Property Value
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
