DT06-12SC-P012 | DEUTSCH

Socket, 12 pole, straight, 2 rows, green, DT06-12SC-P012

Order No.: 72P2633
EAN: 4099889506471
MPN:
DT06-12SC-P012
Series: DT

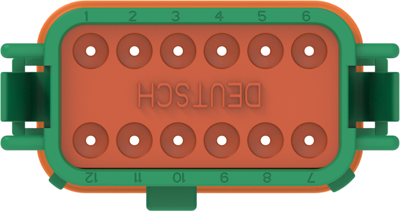

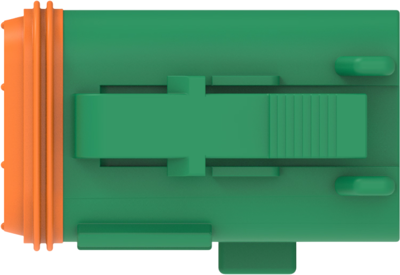

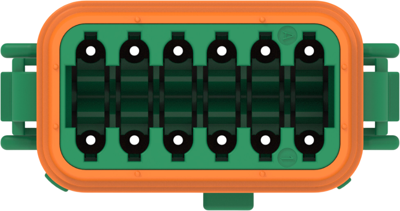

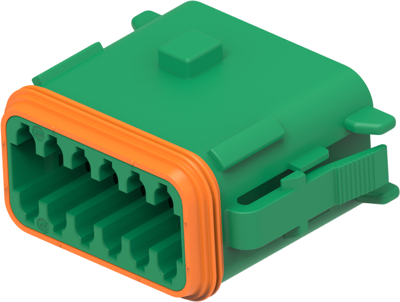

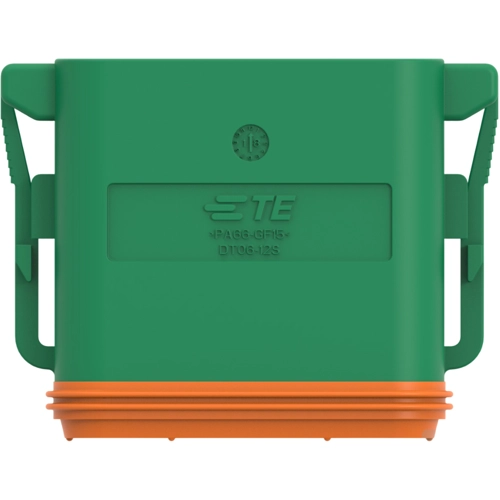

DT06-12SC-P012 DEUTSCH Automotive Power Connectors Image 1
DT06-12SC-P012 DEUTSCH Automotive Power Connectors Image 2
DT06-12SC-P012 DEUTSCH Automotive Power Connectors Image 3
DT06-12SC-P012 DEUTSCH Automotive Power Connectors Image 4
DT06-12SC-P012 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
12.1261 € *
Available in 5 Days: 15 pcs. - if ordered today
Total Price:
12.13 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1261 €
10 pcs.
11.1503 €
50 pcs.
10.0436 €
100 pcs.
9.0440 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DT06-12SC-P012, DEUTSCH

The DT06-12SC-P012 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Version straight
Colour green
Type of locking Yes
Rated voltage 250 V
Pin number 12 pole
Connection crimp connection
Grid 9.12 mm
Number of rows 2
Rated current 13 A
Contact type socket
Logistics
Customs tariff number 85389099
Country of origin MX
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
