DT06-12SA | DEUTSCH
Socket, 12 pole, straight, 2 rows, gray, DT06-12SA
Unit Price (€ / pc.)
5.5573 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
5.56 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5573 €
10 pcs.
5.1646 €
25 pcs.
4.8195 €
50 pcs.
4.3792 €
*incl. VAT plus shipping costs
Subject to prior sale

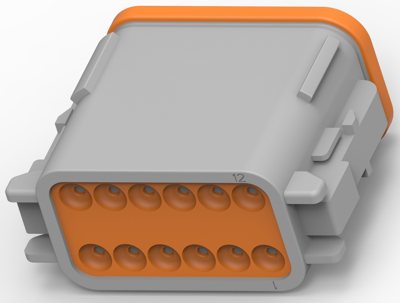

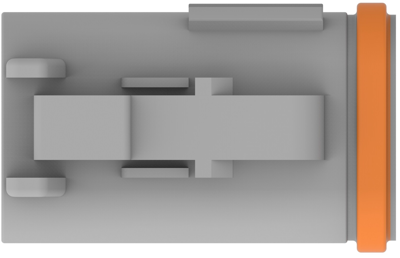

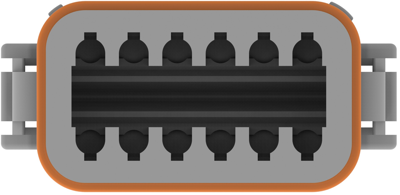

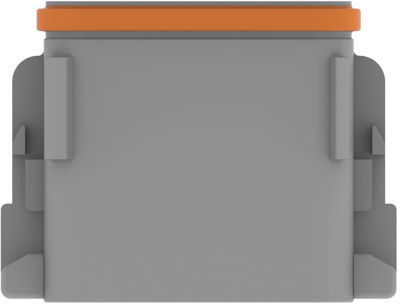

Sealed connector, DT06-12SA, DEUTSCH
The DT06-12SA is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.
Features
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedge locks confirm contact alignment and retention
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 13 A | |
| Rated voltage | 250 V | |
| Version | straight | |
| Number of rows | 2 | |
| Pin number | 12 pole | |
| Grid | 9.12 mm | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | gray | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
