DT06-12SA-CE10 | DEUTSCH

Socket, 12 pole, straight, 2 rows, black, DT06-12SA-CE10

Order No.: 72P2627
EAN: 4099889506433
MPN:
DT06-12SA-CE10
Series: DT

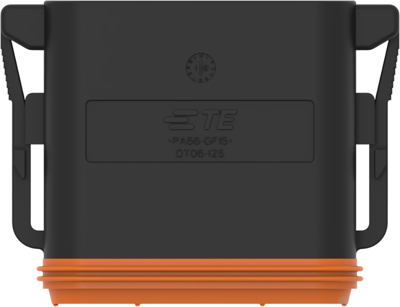

DT06-12SA-CE10 DEUTSCH Automotive Power Connectors Image 1

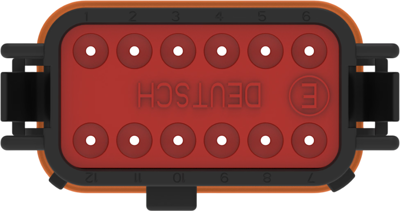

DT06-12SA-CE10 DEUTSCH Automotive Power Connectors Image 2

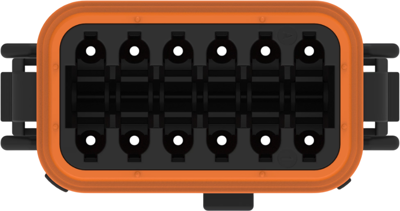

DT06-12SA-CE10 DEUTSCH Automotive Power Connectors Image 3

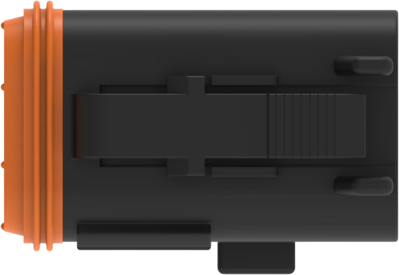

DT06-12SA-CE10 DEUTSCH Automotive Power Connectors Image 4

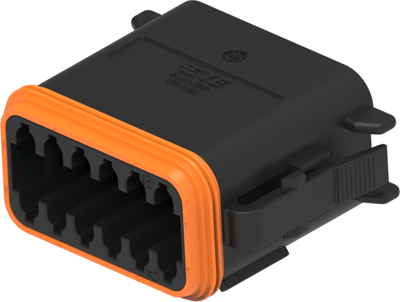

DT06-12SA-CE10 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
5.5573 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
5.56 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5573 €
10 pcs.
5.1646 €
25 pcs.
4.8195 €
50 pcs.
4.3792 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DT06-12SA-CE10, DEUTSCH

The DT06-12SA-CE10 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Filter Property Value
Grid 9.12 mm
Connection crimp connection
Contact type socket
Rated current 13 A
Version straight
Pin number 12 pole
Type of locking Yes
Number of rows 2
Colour black
Rated voltage 250 V
Logistics
Property Value
Country of origin CN
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
