DT06-12SA-CE06 | DEUTSCH

Socket, 12 pole, straight, 2 rows, gray, DT06-12SA-CE06

Order No.: 72P2626
EAN: 4099889506426
MPN:
DT06-12SA-CE06
Series: DT

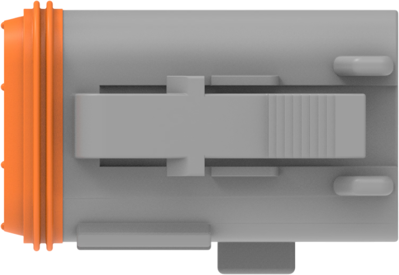

DT06-12SA-CE06 DEUTSCH Automotive Power Connectors Image 1

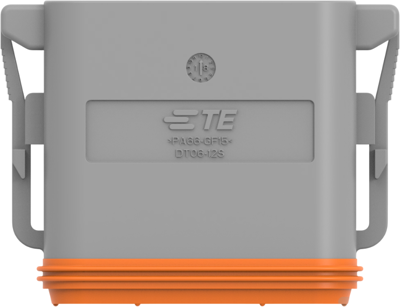

DT06-12SA-CE06 DEUTSCH Automotive Power Connectors Image 2

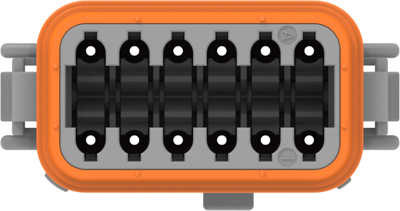

DT06-12SA-CE06 DEUTSCH Automotive Power Connectors Image 3

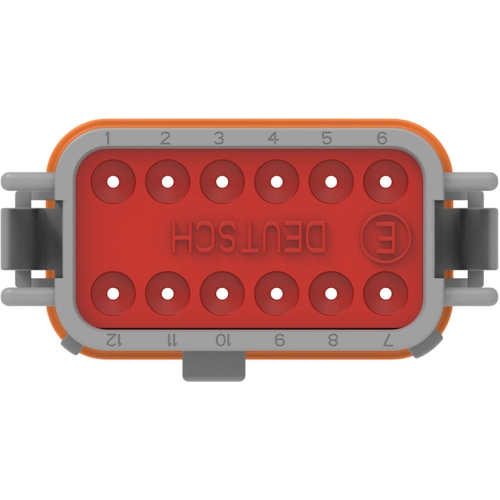

DT06-12SA-CE06 DEUTSCH Automotive Power Connectors Image 4
DT06-12SA-CE06 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.0821 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
3,082.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
3.0821 €

Sealed connector, DT06-12SA-CE06, DEUTSCH

The DT06-12SA-CE06 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Filter Property Value
Type of locking Yes
Rated current 13 A
Version straight
Connection crimp connection
Number of rows 2
Colour gray
Grid 9.12 mm
Contact type socket
Pin number 12 pole
Rated voltage 250 V
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
