DT04-3P-EP10 | DEUTSCH

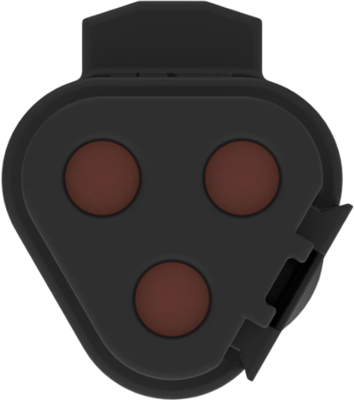

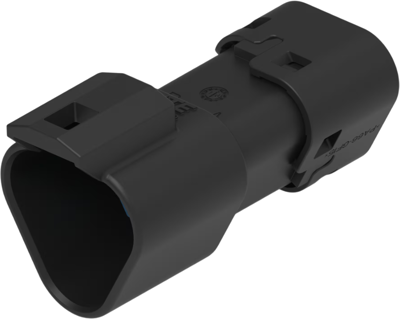

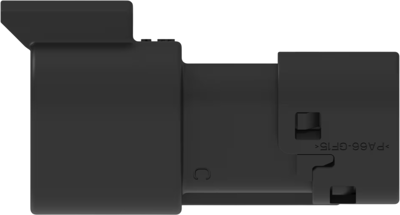

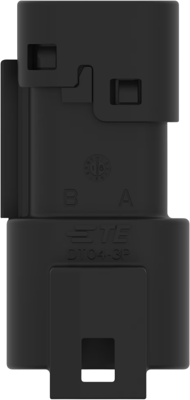

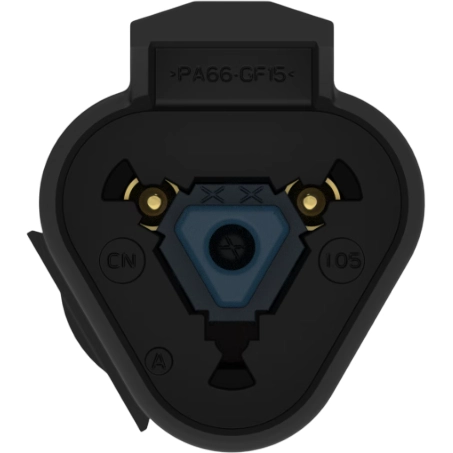

Socket, 3 pole, straight, 2 rows, black, DT04-3P-EP10
Unit Price (€ / pc.)
6.5450 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5450 €
10 pcs.
6.0809 €
25 pcs.
5.6763 €
50 pcs.
5.1527 €
*incl. VAT plus shipping costs
Subject to prior sale
Sealed connector, DT04-3P-EP10, DEUTSCH
The DT04-3P-EP10 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.
Features
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedge locks confirm contact alignment and retention
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | Yes | |
| Contact type | socket | |
| Rated current | 13 A | |
| Version | straight | |
| Colour | black | |
| Grid | 10.01 mm | |
| Number of rows | 2 | |
| Rated voltage | 250 V | |
| Pin number | 3 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
