DT04-3P-C015 | DEUTSCH

Plug, equipped, 3 pole, straight, 2 rows, gray, DT04-3P-C015

Order No.: 36P0018
EAN: 4099889891799
MPN:
DT04-3P-C015
Series: DT

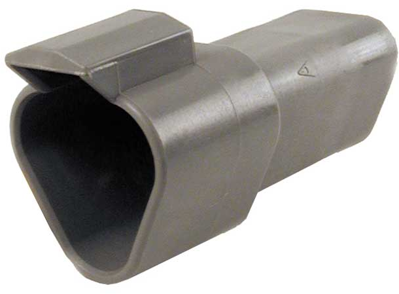

DT04-3P-C015 DEUTSCH Automotive Power Connectors Image 1

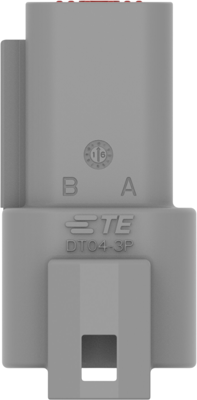

DT04-3P-C015 DEUTSCH Automotive Power Connectors Image 2

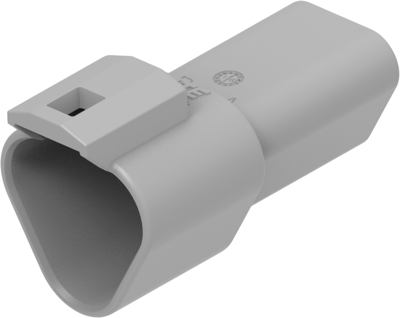

DT04-3P-C015 DEUTSCH Automotive Power Connectors Image 3

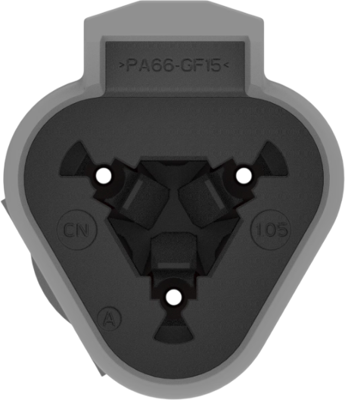

DT04-3P-C015 DEUTSCH Automotive Power Connectors Image 4

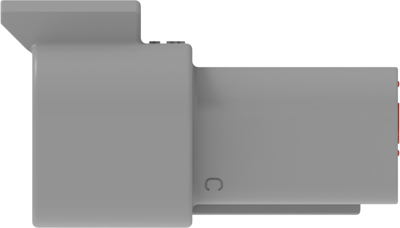

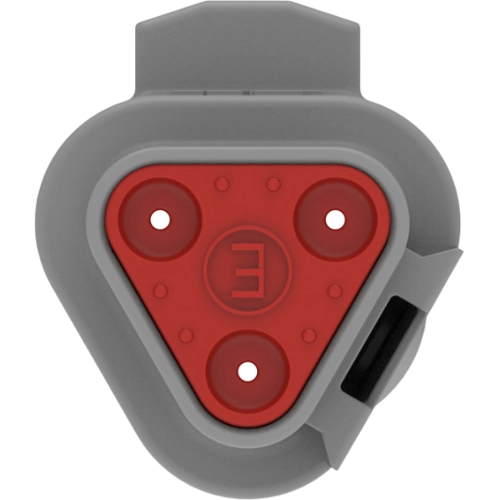

DT04-3P-C015 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.1424 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1.14 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1424 €
10 pcs.
1.0591 €
25 pcs.
0.9877 €
50 pcs.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale

Housing terminals, DT04-3P-C015, DEUTSCH

Housing for male terminals, Wire-to-wire, 3 Position, 10.01 mm Centerline, Sealable, Gray, Wire & cable, Power & signal, DEUTSCH DT

Technical specifications
Filter Property Value
Grid 10.01 mm
Connection crimp connection
Version straight
Pin number 3 pole
Additional parts equipped
Contact type plug
Type of locking Yes
Number of rows 2
Colour gray
Rated current 13 A
Rated voltage 250 V
Logistics
Property Value
Customs tariff number 85389099
Country of origin MX
Compliance
Property Value
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
