DT04-2P-E004 | DEUTSCH
Socket, 2 pole, straight, 1 row, black, DT04-2P-E004
Unit Price (€ / pc.)
1.0948 € *
Available in 5 Days: 2,272 pcs. - if ordered today
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0948 €
10 pcs.
1.0115 €
25 pcs.
0.9401 €
50 pcs.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale

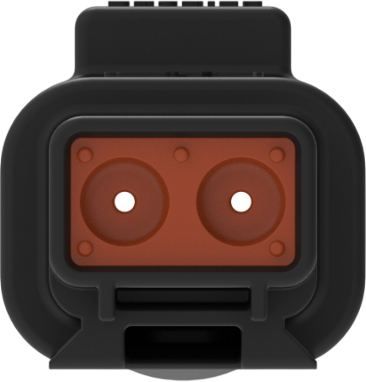

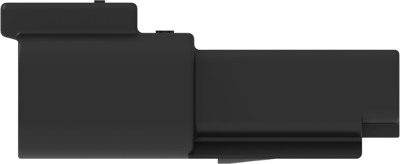

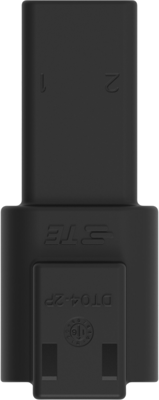

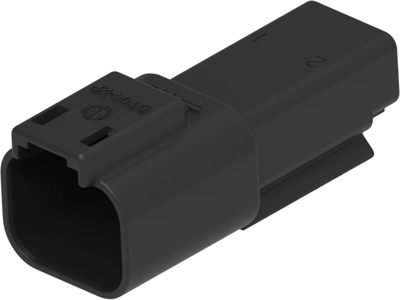

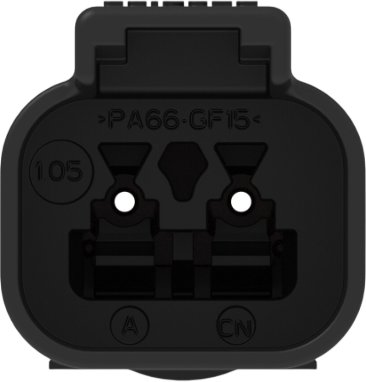

Sealed connector, DT04-2P-E004, DEUTSCH
The DT04-2P-E004 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.
Features
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedge locks confirm contact alignment and retention
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.46 mm | |
| Pin number | 2 pole | |
| Colour | black | |
| Contact type | socket | |
| Rated current | 13 A | |
| Version | straight | |
| Connection | crimp connection | |
| Number of rows | 1 | |
| Rated voltage | 250 V | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
