DT04-2P-CE01 | DEUTSCH

Plug, 2 pole, straight, 1 row, gray, DT04-2P-CE01

Order No.: 36P0090
MPN:
DT04-2P-CE01
Series: DT
DEUTSCH

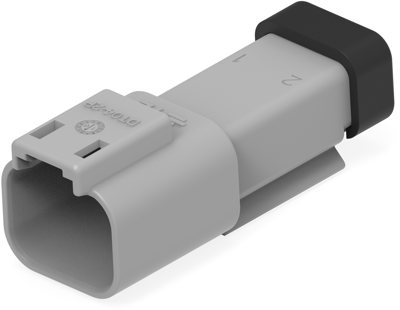

DT04-2P-CE01 DEUTSCH Automotive Power Connectors Image 1

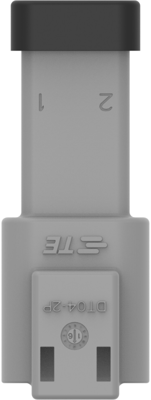

DT04-2P-CE01 DEUTSCH Automotive Power Connectors Image 2

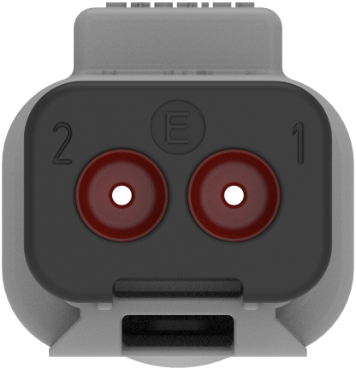

DT04-2P-CE01 DEUTSCH Automotive Power Connectors Image 3

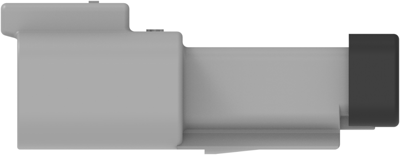

DT04-2P-CE01 DEUTSCH Automotive Power Connectors Image 4

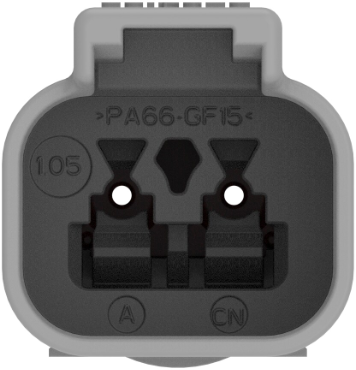

DT04-2P-CE01 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.8092 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
0.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
35000 pcs.
0.8092 €

Housing for male terminal, DT04-2P-CE01, DEUTSCH

Housing for male terminals, Wire-to-Wire, 2 Position, 5.46 mm Centerline, Sealable, Gray, Wire and cable, Power and signal.

Technical specifications
Connection crimp connection
Number of rows 1
Version straight
Colour gray
Contact type plug
Rated voltage 250 V
Rated current 13 A
Pin number 2 pole
Grid 5.46 mm
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
