DT04-12PA-L012 | DEUTSCH
Socket, 12 pole, straight, 2 rows, gray, DT04-12PA-L012
Unit Price (€ / pc.)
23.3597 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
23.36 € *
Price list
Quantity
Price per unit*
1 pcs.
23.3597 €
10 pcs.
21.4676 €
50 pcs.
19.3375 €
100 pcs.
17.4097 €
*incl. VAT plus shipping costs
**Subject to prior sale

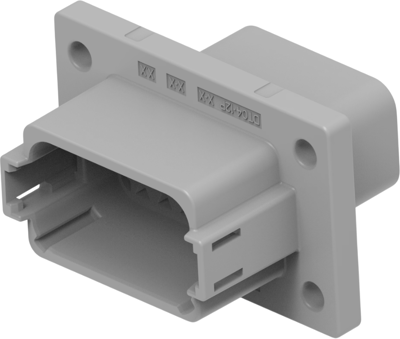

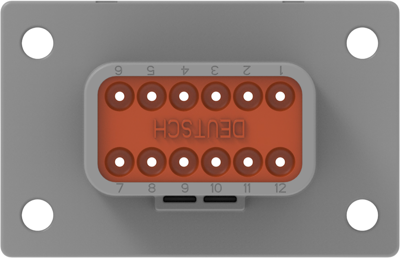

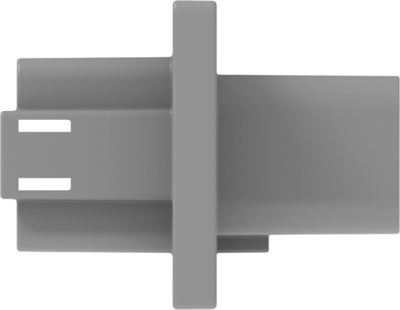

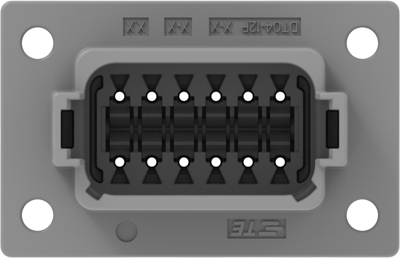

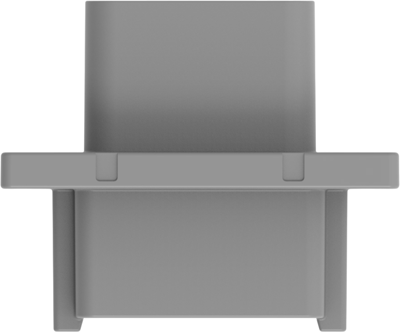

Sealed connector, DT04-12PA-L012, DEUTSCH
The DT04-12PA-L012 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.
Features
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedge locks confirm contact alignment and retention
Technical specifications
| Number of rows | 2 | |
| Rated voltage | 250 V | |
| Contact type | socket | |
| Type of locking | Yes | |
| Connection | crimp connection | |
| Pin number | 12 pole | |
| Grid | 9.12 mm | |
| Colour | gray | |
| Version | straight | |
| Rated current | 13 A |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
| RoHS conform | Yes |
