DT04-08PA-C015 | DEUTSCH

Socket, 8 pole, straight, 2 rows, gray, DT04-08PA-C015

Order No.: 72P2597
EAN: 4099889460889
MPN:
DT04-08PA-C015
Series: DT

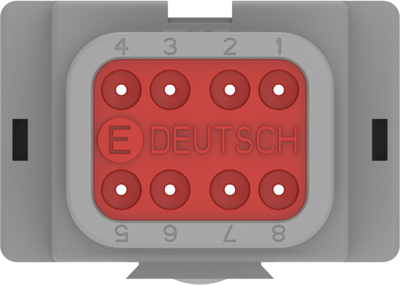

DT04-08PA-C015 DEUTSCH Automotive Power Connectors Image 1

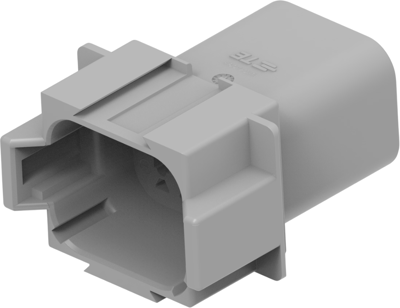

DT04-08PA-C015 DEUTSCH Automotive Power Connectors Image 2

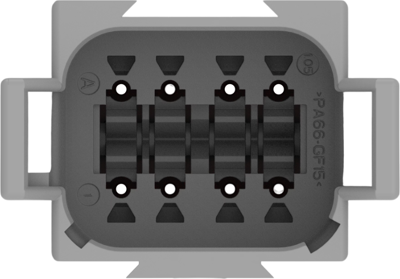

DT04-08PA-C015 DEUTSCH Automotive Power Connectors Image 3

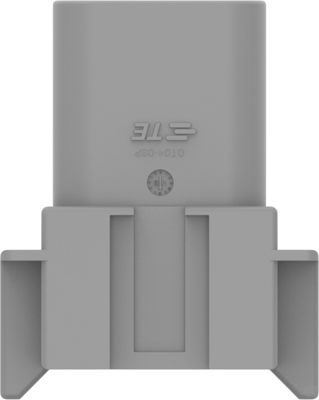

DT04-08PA-C015 DEUTSCH Automotive Power Connectors Image 4

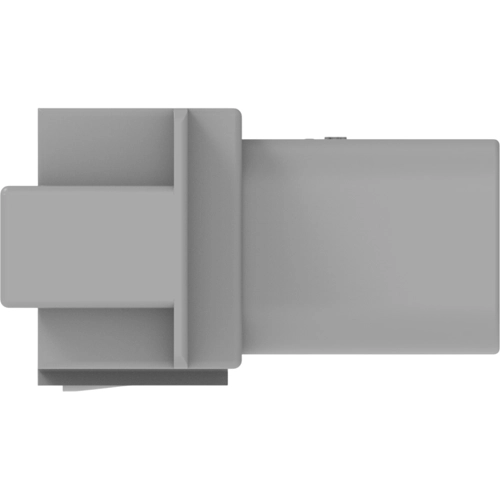

DT04-08PA-C015 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
7.0567 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
7.06 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0567 €
10 pcs.
6.4855 €
50 pcs.
5.8429 €
100 pcs.
5.2598 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DT04-08PA-C015, DEUTSCH

The DT04-08PA-C015 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Type of locking Yes
Pin number 8 pole
Rated voltage 250 V
Connection crimp connection
Colour gray
Number of rows 2
Grid 9.12 mm
Rated current 13 A
Contact type socket
Version straight
Logistics
Customs tariff number 85389099
Country of origin MX
Compliance
RoHS conform Yes
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
Date of RoHS guidelines 3/31/15
SVHC free No
