110553 | Deutronic
DC converter, 12 VDC, 1 W, 2 outputs, ±9 VDC, 75 % efficiency, 110553
Unit Price (€ / pc.)
29.6310 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
29.63 € *
Price list
Quantity
Price per unit*
1 pcs.
29.6310 €
25 pcs.
13.7445 €
50 pcs.
11.2455 €
100 pcs.
9.8175 €
250 pcs.
6.5331 €
*incl. VAT plus shipping costs
Subject to prior sale
DC converters, type Deutronic E1Z../E2Z.
Miniature non-regulated 1.0 W or 2.0 W DC/DC converter; Features: 7 pin SiL package for direct PCB mounting, electrically isolated single or dual outputs. Output tolerance: ±5.0 %. Residual ripple: 150 mVpp. Control error on load fluctuation: ±10 %. Insulation voltage between primary/secondary circuits: 1000 VDC. Operating temperatures: 0 to +70 °C.

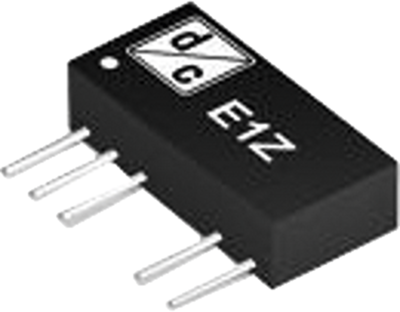

SiL package with 1.0 W output power, type E1Z.

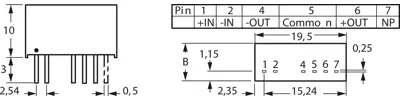

Dimensions: L 19.5, W 6.0, H 10 mm
Technical attributes (type, input voltage, output voltage/current (± is 2 x OUT), efficiency): E1Z12A9-9, input 12 VDC, output ±9.0 V/±56 mA, 75 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 56 mA | |
| Output voltage DC | ±9 VDC | |
| Input voltage AC | 12 VDC | |
| Power | 1 W | |
| efficiency | 75 % | |
| Design | SIP7 | |
| Isolation voltage | 1 kV | |
| Length | 19.5 mm | |
| Width | 6 mm | |
| Height | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85043129 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
