110530 | Deutronic

DC converter, 24 VDC, 1 W, 1 output, 9 VDC, 75 % efficiency, 110530

Order No.: 26K1048
EAN: 4099891297275
MPN:
110530
E1K24A9
Series: E1K

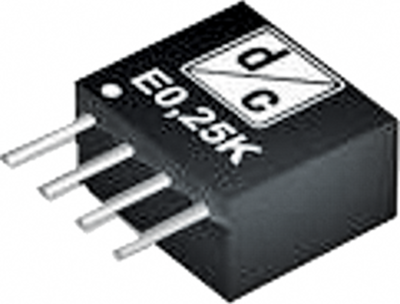

110530 Deutronic DC/DC Converters Image 1
110530 Deutronic DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
15.0297 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
15.03 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0297 €
10 pcs.
13.5303 €
25 pcs.
12.1737 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Deutronic E0,25K../E1K.

Miniature design. Non-regulated 0.25 W or 1.0 W DC/DC converter,; Features: 4-pin SiL package for direct PCB mounting, electrically isolated outputs. Efficiency: 60 % to 80 % depending on the type. Output tolerance: ±5.0 %. Residual ripple (E0.25K/E1K): 100/150 mVpp. Control error on load fluctuation: ±10 %. Insulation voltage primary-secondary circuits: 1000 V. Operating temperatures: 0 to +70 °C.

SiL packages with 1.0 W output power, type E1K.

Technical attributes (type, input voltage, output voltage/current, efficiency): E1K24A9, input 24 VDC, output 9.0 V/111 mA, 75 %

Technical specifications
Filter Property Value
Number of outputs 1
Output current 111 mA
Output voltage DC 9 VDC
Input voltage AC 24 VDC
Power 1 W
efficiency 75 %

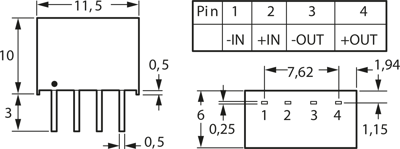

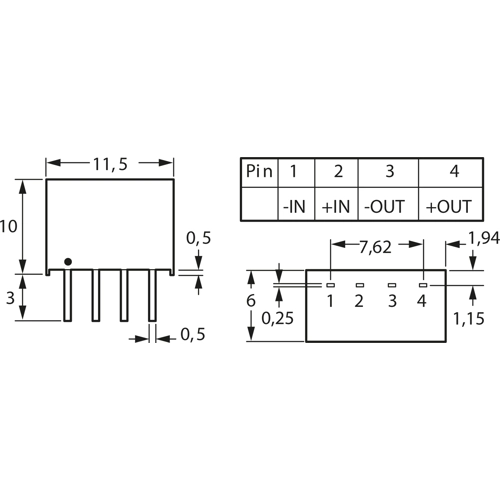

Design SIP4
Isolation voltage 1 kV
Length 11.5 mm
Width 6 mm
Height 10 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85043129
Original Packaging Bar with 10 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
