105123 | Deutronic

DC converter, 24 VDC, 250 W, 1 output, 24.5 VDC, 90 % efficiency, 105123

Order No.: 25K3044
EAN: 4099891296995
MPN:
105123
DVC251-24-24
Series: DVC

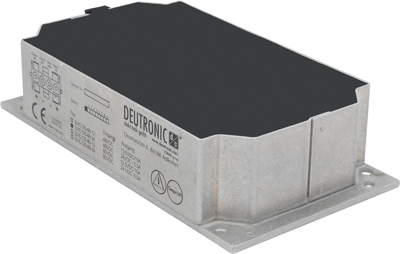

105123 Deutronic DC/DC Converters Image 1
105123 Deutronic DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
261.6929 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
261.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
261.6929 €

DC converters, type Deutronic DVC.

DC voltage extended-range input, high efficiency, Features: electrical isolation 1.5 kV. Insulation: 500 V output to housing, controlled output, short circuit-/open circuit-proof, reverse polarity-proof, thermal overload protection, vibration-proof structure, molded aluminum housing. Efficiency: approx. 90 %. Operating temperatures: –40 to +75 °C.

DC converters, output power 228 W/252 W, type DVC 251.

Connection: approx. 0.1 m cable with 6-pole MATE-N-LOK connector. Dimensions: L153, W 131, H 50 mm. Weight: approx. 950 g.

Technical attributes (type, rated input voltage/input voltage range, output voltage, output current): DVC 251-24-24, input 24 VDC/19 to 45 VDC, output 24 VDC, 9.5 A

Technical specifications
Filter Property Value
Width 131 mm
Power 250 W
Length 153 mm
Input voltage AC 24 VDC
Isolation voltage 1.5 kV
Output current 9.5 A
efficiency 90 %
Number of outputs 1
Height 50 mm
Output voltage DC 24.5 VDC
Logistics
Property Value
Country of origin DE
Customs tariff number 85044095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
