105093 | Deutronic

DC converter, 80 VDC, 75 W, 1 output, 24.5 VDC, 90 % efficiency, 105093

Order No.: 25K3016
EAN: 4099891296964
MPN:
105093
DVC75-80-24
Series: DVC

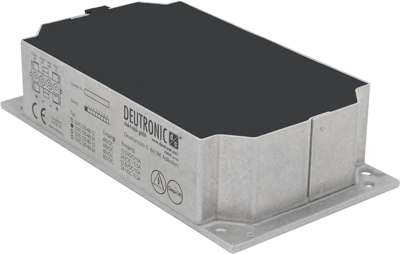

105093 Deutronic DC/DC Converters Image 1
105093 Deutronic DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
161.7805 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
161.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
161.7805 €

DC converters, type Deutronic DVC.

DC voltage extended-range input, high efficiency, Features: electrical isolation 1.5 kV. Insulation: 500 V output to housing, controlled output, short circuit-/open circuit-proof, reverse polarity-proof, thermal overload protection, vibration-proof structure, molded aluminum housing. Efficiency: approx. 90 %. Operating temperatures: –40 to +75 °C.

DC converters, output power 75 W, type DVC 75-.

Connection: approx. 0.1 m cable with 4-pole MATE-N-LOK connector. Dimensions: L 110/93, W 100/68, H 38 mm. Weight: 450 g.

Technical attributes (type, rated input voltage/input voltage range, output voltage, output current): DVC 75-80-24, input 80 V/56 to 150 VDC, output 24 VDC, 3.2 A

Technical specifications
Filter Property Value
Width 100 mm
Power 75 W
Length 110 mm
Input voltage AC 80 VDC
Isolation voltage 1.5 kV
Output current 3.2 A
efficiency 90 %
Number of outputs 1
Height 39 mm
Output voltage DC 24.5 VDC
Logistics
Property Value
Country of origin DE
Customs tariff number 85044095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
