105082 | Deutronic

DC converter, 24 VDC, 125 W, 1 output, 24.5 VDC, 90 % efficiency, 105082

Order No.: 25K3026
EAN: 4099891296988
MPN:
105082
DVC125-80-24
Series: DVC

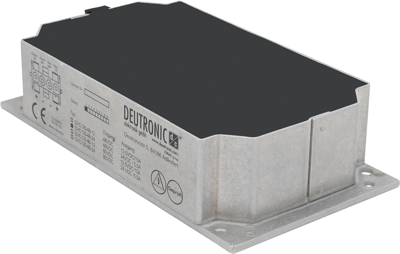

105082 Deutronic DC/DC Converters Image 1
105082 Deutronic DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
199.8367 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
199.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
199.8367 €

DC converters, type Deutronic DVC.

DC voltage extended-range input, high efficiency, Features: electrical isolation 1.5 kV. Insulation: 500 V output to housing, controlled output, short circuit-/open circuit-proof, reverse polarity-proof, thermal overload protection, vibration-proof structure, molded aluminum housing. Efficiency: approx. 90 %. Operating temperatures: - 40 to +75 °C.

DC converters, output power 125 W, type DVC 125-.

Connection: approx. 0.1 m cable with 4-pole MATE-N-LOK connector. Dimensions: L 156/140, W 85, H 37/40 mm.

Technical specifications
Filter Property Value
Width 85 mm
Power 125 W
Length 156 mm
Input voltage AC 24 VDC
Isolation voltage 1.5 kV
Output current 5.5 A
efficiency 90 %
Number of outputs 1
Height 40 mm
Output voltage DC 24.5 VDC
Logistics
Property Value
Country of origin DE
Customs tariff number 85044095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
