109515 | Deutronic

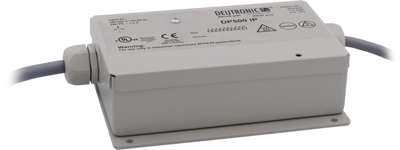

Power supply, 24 VDC, 20 A, 480 W, 109515
Unit Price (€ / pc.)
483.9849 € *
Standard delivery time from the manufacturer is: 4 Weeks
Stromversorgung Typ Deutronic DP500IP.
Mit aktivem Leistungsfaktorkorrekturfilter, Kurzschluss-, Leerlauf-, Überspannungs- und Übertemperaturschutz, kein Einschaltstromstoß. Eingang 100 bis 240 VAC; Restwelligkeit: max. 150 mVpp, Wirkungsgrad: 93 %, Schutzart: IP 67, Zulassung: CE, Betriebstemperatur: –25 bis +85 °C. Tabellenangaben: Typ, Ausgangsspannung, -strom.
Type: DP500IP-24, 24 VDC, 20 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 24 VDC | |
| Depth | 134 mm | |
| Number of outputs | 1 | |
| efficiency | 93 % | |
| Power | 480 W | |
| Input voltage AC | 100-240 VAC | |
| Width | 185 mm | |
| Height | 56 mm | |
| Output current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
