FM25V10-GTR | Cypress

FRAM 1 Mbit, SOIC-8, FM25V10-GTR

Order No.: 53S4033
EAN: 4099879150585
MPN:
FM25V10-GTR
Series: FM25V
FM25V10-GTR Cypress Memory ICs

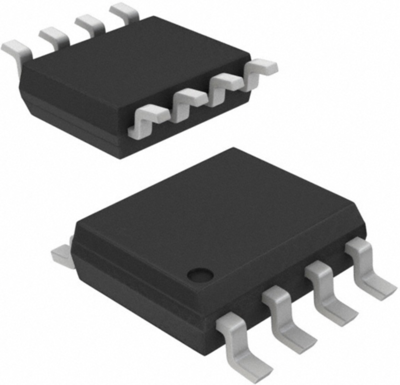

Image may differ
Unit Price (€ / pc.)
12.6616 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
31,654.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
12.6616 €

Memory ICs, FM25V10-GTR, Cypress

The FM25V10 is a 1-Mbitt nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or F-RAM is nonvolatile and performs reads and writes similar to a RAM 100 trillion read/write cycles or 100 million times more write cycles than EEPROM. The device uses the high-speed SPI bus, which enhances the high-speed write capability of F-RAM technology and is offered with a unique serial number that is read-only and can be used to identify a board or system.

Features

  • High-endurance 100 trillion read/writes
  • Very fast serial peripheral interface (SPI)
  • Sophisticated write protection scheme
  • Device ID and Serial Number
  • Low power consumption
Technical specifications
Technology FRAM
Enclosure SOIC-8
Assembly SMD
Memory size 1 Mbit
Voltage 2-3.6 V
Clock frequency 40 MHz
min. operating temperature -40 °C
max. operating temperature 85 °C
Logistics
MSL MSL 3
Original Packaging Reel with 2,500 pieces
Customs tariff number 85423290
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
