FM25C160B-GTR | Cypress

FRAM FM25C160B-GTR

Order No.: 53S4000
MPN:
FM25C160B-GTR
Series: FM25C
FM25C160B-GTR Cypress Memory ICs

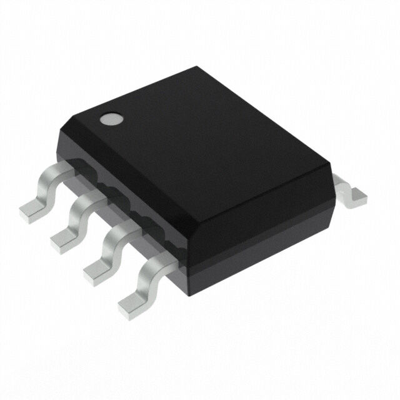

Image may differ
Unit Price (€ / pc.)
1.4875 € *
Available in 5 Days: 2,475 pcs. - if ordered today
Total Price:
7.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
1.4875 €

16-Kbit nonvolatile memory, FM25C160B-GTR, Cypress

The FM25C160B-GTR is a 16-Kbit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or F-RAM is nonvolatile and performs reads and writes similar to a RAM. It provides reliable data retention for 121 years while eliminating the complexities, overhead, and system level reliability problems caused by serial flash, EEPROM, and other nonvolatile memories. The FM25C160B-GTR performs write operations at bus speed. No write delays are incurred. Data is written to the memory array immediately after each byte is successfully transferred to the device. The next bus cycle can commence without the need for data polling. In addition, the product offers substantial write endurance compared with other nonvolatile memories. The FM25C160B-GTR is capable of supporting 1013 read/write cycles, or 10 million times more write cycles than EEPROM.

Features

  • Very fast serial peripheral interface (SPI)
  • Sophisticated write protection scheme
  • Low power consumption
  • Restriction of hazardous substances (RoHS) compliant
Technical specifications
Filter Property Value
max. operating temperature 85 °C
Voltage 4.5-5.5 V
min. operating temperature -40 °C
Enclosure SOIC-8
Memory size 16 kbit
Clock frequency 20 MHz
Technology FRAM
Assembly SMD
Logistics
Property Value
Customs tariff number 85423290
MSL MSL 3
Original Packaging Reel with 2,500 pieces
Compliance
Property Value
Date of RoHS guidelines 6/8/11
SVHC free Yes
RoHS conform Yes
