CY62157EV30LL-45BVXI | Cypress

SRAM 512 kbit, VFBGA-48, CY62157EV30LL-45BVXI

Order No.: 64S2117
EAN: 4099891712112
MPN:
CY62157EV30LL-45BVXI
Series: CY62
CY62157EV30LL-45BVXI Cypress Memory ICs

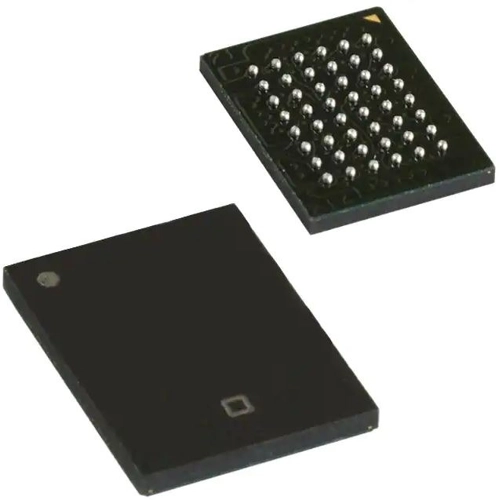

Image may differ
Unit Price (€ / pc.)
3.4986 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1,679.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
480 pcs.
3.4986 €

8-Mbit static RAM, CY62157EV30LL-45BVXI, Cypress

CY62157EV30LL-45BVXI is a high performance CMOS static RAM organized as 512K words by 16 bits. This device features advanced circuit design to provide ultra low active current. This is ideal for providing more battery life in portable applications such as cellular telephones. The device also has an automatic power down feature that significantly reduces power consumption when addresses are not toggling.

Features

  • High speed: 45 ns
  • Ultra low standby power
  • Ultra low active power
  • Automatic power-down when deselected
  • Complementary metal oxide semiconductor (CMOS) for optimum speed and power
  • Easy memory expansion with CE1, CE2, and OE features
Technical specifications
Assembly SMD
Enclosure VFBGA-48
Technology SRAM
Memory size 512 kbit
Voltage 2.2-3.6 V
min. operating temperature -40 °C
Access time 45 s
max. operating temperature 85 °C
Logistics
Customs tariff number 85423231
MSL MSL 3
Original Packaging Tray with 480 pieces
Compliance
SVHC free Yes
RoHS conform Yes
