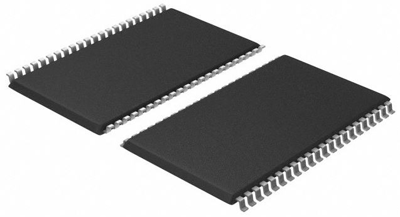

CY62147EV30LL-45ZSXIT | Cypress
SRAM, 256 kbit, TSOP II-44, Cypress CY62147EV30LL-45ZSXIT
Unit Price (€ / pc.)
3.0107 € *
Standard delivery time from the manufacturer is: 8 Weeks
4-Mbit static RAM, CY62147EV30LL-45ZSXIT, Cypress
CY62147EV30LL-45ZSXIT is a high performance CMOS static RAM (SRAM) organized as 256K words by 16 bits. This device features advanced circuit design to provide ultra low active current. This is ideal for providing more battery life in portable applications such as cellular telephones. The device also has an automatic power-down feature that significantly reduces power consumption when addresses are not toggling.
Features
- Very high speed: 45 ns
- Ultra low standby power
- Ultra low active power
- Automatic power-down when deselected
- Complementary metal oxide semiconductor (CMOS) for optimum speed and power
- Byte power-down feature
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Access time | 45 s | |
| max. operating temperature | 85 °C | |
| Technology | SRAM | |
| Memory size | 256 kbit | |
| Voltage | 2.2-3.6 V | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Enclosure | TSOP II-44 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85423231 |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
