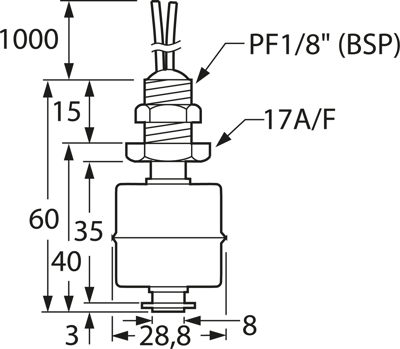

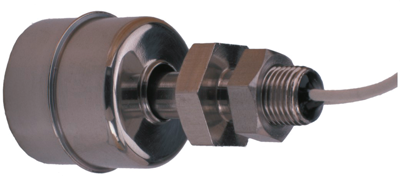

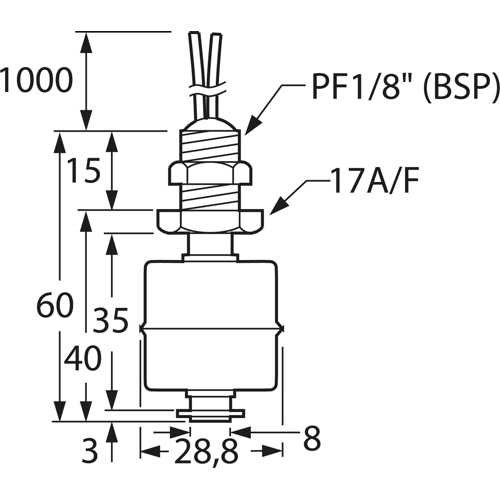

Vertical float switches made of stainless steel, type Cynergy3 SSF22.
Contact type: configurable as NO or NC. For internal installation and panel thickness to max. 10 mm. Material: stainless steel. Cable length: 1000 mm, AWG 22. Inner conductor: tinned copper. Cable outer insulation: XLPE. Floating density: 0.7. Liquid viscosity: min. 0.8. Breaking capacity: max. 50 VA. Switching current: max. 0.5 A. Switching voltage: max. 300 V AC/DC. Pressure: max. 10 bar. Operating temperatures: to +120 °C.
Type: SSF22X100, float switch
Version | float switch | |
Pressure | 10 bar | |
Flow range | 0.8 | |
Shell Material | stainless steel | |
Medium | Liquids | |
Switching Voltage (AC) | 300 V | |
Switching Voltage (DC) | 300 V |
Country of origin | TW |
Customs tariff number | 90261089 |
RoHS conform | Yes |
Date of RoHS guidelines | 6/8/11 |
SVHC free | Yes |
