SDI2415 | CRYDOM
Solid state relay, 240 VAC, zero voltage switching, 3.5-10 VDC, 1.5 A, PCB mounting, SDI2415
Unit Price (€ / pc.)
41.1145 € *
Available in 5 Days: 309 pcs. - if ordered today
Total Price:
41.11 € *
Price list
Quantity
Price per unit*
1 pcs.
41.1145 €
5 pcs.
39.3057 €
10 pcs.
37.6397 €
25 pcs.
36.1165 €
*incl. VAT plus shipping costs
Subject to prior sale

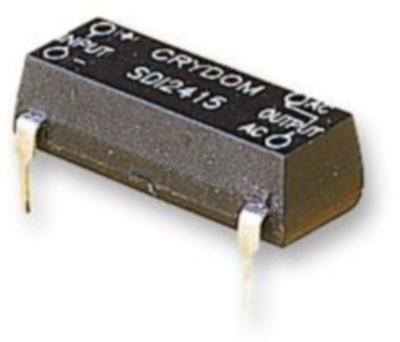

Solid state relay, SDI2415, CRYDOM
Solid state relay, PCB Mount DIP, 240VAC/1.5A, 10-35mA In.
Features
- 16 Pin DIP SSR
- Ratings to 1.5A @ 280 VAC
- SCR output
- Current control input
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1.5 A | |
| Voltage | 3.5-10 VDC | |
| Control Voltage | 240 VAC | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Switching Mode | zero voltage switching | |
| Assembly | PCB mounting | |
| LED display | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
