MCPC4850C | CRYDOM
Solid state relay, 300-530 VAC, 50 A, PCB mounting, MCPC4850C
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
152.7484 € *
Available in 12 Days: 202 pcs. - if ordered today

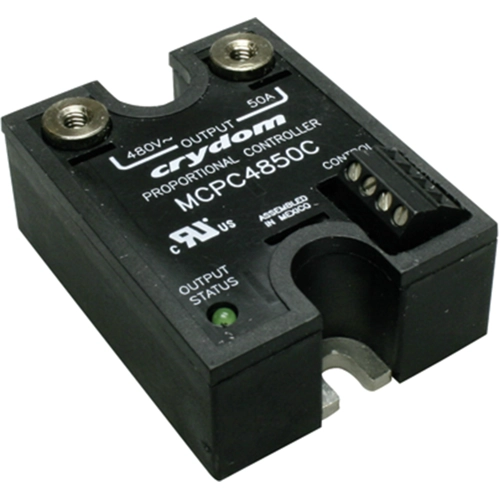

Solid state relay, MCPC4850C, CRYDOM
Microcontroller with phase-angle control (proportional controller), for screw-on mounting, with screw terminals and status display, overvoltage protection and SCR output. Output voltage ratio control by means of extra-low voltage 0 to 10 VDC, or 4.0 to 20 mA, or with integrated potentiometer; Output voltage range: 300 to 530 VAC. Surge voltage: 1200 VAC. Load current: max.50 A, min. 150 mA. Input voltage range: 8.0 to 32 VDC. Input current: 28 to 30 mA. Operating temperatures: -20 to +80 °C.
Technical attributes (type, control input version): MCPC4850C, 0 to 10 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 50 A | |
| Control Voltage | 300-530 VAC | |
| Assembly | PCB mounting | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
