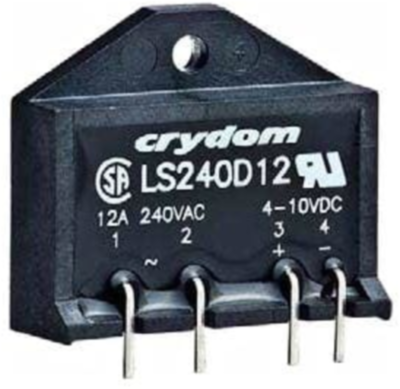

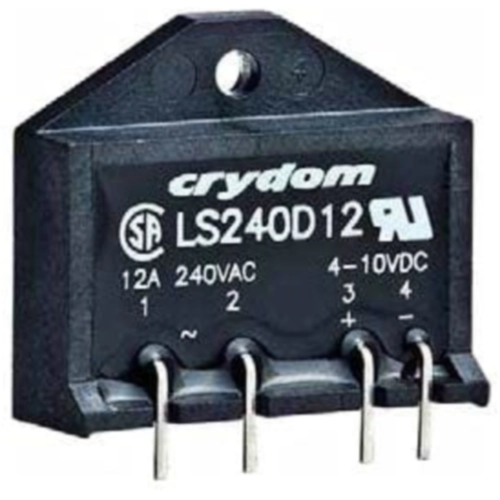

LS240D12R | CRYDOM
Solid state relay, 280 VAC, immediate switching, 4-10 VDC, 12 A, PCB mounting, LS240D12R
Unit Price (€ / pc.)
37.5683 € *
Available in 5 Days: 1,174 pcs. - if ordered today
Total Price:
37.57 € *
Price list
Quantity
Price per unit*
1 pcs.
37.5683 €
5 pcs.
35.2597 €
10 pcs.
33.2129 €
25 pcs.
31.3922 €
*incl. VAT plus shipping costs
Subject to prior sale
Solid state relay, LS240D12R, CRYDOM
Solid state relay, PCB Mount SIP, 280VAC/12A, 4-10VDC, Instantaneous.
Features
- SIP SSR
- Ratings to 12A @ 280 VAC
- SCR output for heavy industrial loads
- DC control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| Voltage | 4-10 VDC | |
| Control Voltage | 280 VAC | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Switching Mode | immediate switching | |
| Assembly | PCB mounting | |
| LED display | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
