H12WD4850-10 | CRYDOM

Solid state relay, 660 VAC, immediate switching, 4-32 VDC, 50 A, PCB mounting, H12WD4850-10

Order No.: 30G8708
EAN: 4099889359558
MPN:
H12WD4850-10
Series: H12

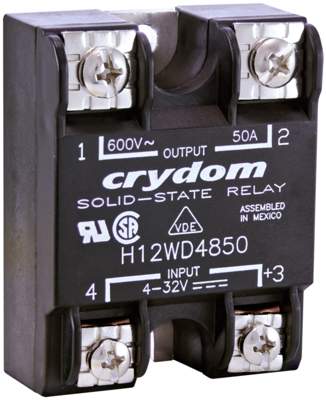

H12WD4850-10 CRYDOM Solid State Relays
Image may differ
Unit Price (€ / pc.)
109.3015 € *
Available: 1 pcs.
Available in 5 Days: 19 pcs. - if ordered today
Total Price:
109.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
109.3015 €

Solid state relay, H12WD4850-10, CRYDOM

Solid state relay, Panel Mount, IP00, 660VAC/50A, DC In, Instantaneous.

Features

  • Low off-state leakage current (snubberless)
  • SCR output for heavy industrial loads
  • UL/CSA/VDE Approved, CE Compliant to EN60950-1
  • Improved SEMS screw and washer
  • Redesigned housing with anti-rotation barriers
  • DC control
  • Direct Bond Copper substrate
  • EMC Compliant to Level 3
  • Direct Power Lead Frame
Technical specifications
Filter Property Value
Rated current 50 A
Voltage 4-32 VDC
Control Voltage 660 VAC
Voltage V RRM (peak reverse voltage) 1.2 kV
Switching Mode immediate switching
Assembly PCB mounting
LED display No
Logistics
Property Value
Country of origin MX
Customs tariff number 85364900
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
