EZ240D18 | CRYDOM
Solid state relay, 280 VAC, zero voltage switching, 3-15 VDC, 18 A, PCB mounting, EZ240D18
Unit Price (€ / pc.)
88.0005 € *
Available in 5 Days: 15 pcs. - if ordered today

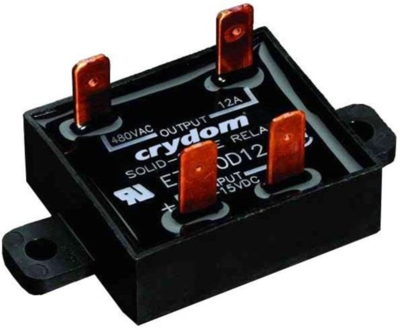

Solid state relay, EZ240D18, CRYDOM
Solid state relay, Panel Mount, IP00, 240VAC/18A, 3-15VDC In, Zero Cross.
Features
- Compact design for low-profile applications
- SCR output for heavy industrial loads
- AC or DC control
- 1/4" fast-on terminals for easy installation
- UL/CSA/VDE Approved, CE Compliant to EN60950-1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 18 A | |
| Voltage | 3-15 VDC | |
| Control Voltage | 280 VAC | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Switching Mode | zero voltage switching | |
| Assembly | PCB mounting | |
| LED display | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
