DRA4D100E12 | CRYDOM
Solid state relay, 100 VDC, 24 VDC, 12 A, DIN rail, DRA4D100E12
Unit Price (€ / pc.)
469.5145 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Total Price:
469.51 € *
Price list
Quantity
Price per unit*
1 pcs.
469.5145 €
2 pcs.
460.1254 €
3 pcs.
450.7244 €
5 pcs.
441.3353 €
*incl. VAT plus shipping costs
**Subject to prior sale

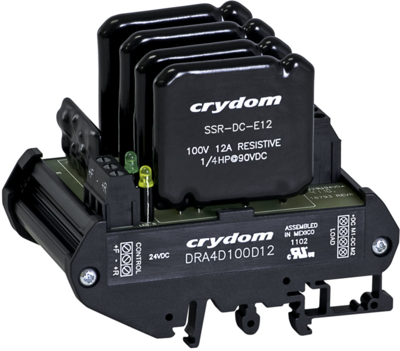

Reversing Contactor, DRA4D100E12, CRYDOM
SSR Reversing Contactor, DIN Rail Mount, 100VDC/12A, 24VDC In
Features
- DC Motor Reversing Contactor
- Ratings of 6 & 12 Amps
- Load voltage ratings of 1-100VDC and 1-250VDC
- Fits standard 35 mm DIN-RAIL
- LED input status indicator. Green (Forward), Yellow (Reverse)
- DC control
- cUL Recognized, IEC Rated, CE & RoHS Compliant
- Horsepower Rated
Technical specifications
| LED display | Yes | |
| Assembly | DIN rail | |
| Rated current | 12 A | |
| Voltage | 24 VDC | |
| Control Voltage | 100 VDC |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
