DRA1-CX240D5-B | CRYDOM
Solid state relay, 280 VAC, zero voltage switching, 3-15 VDC, 5 A, DIN rail, DRA1-CX240D5-B
Unit Price (€ / pc.)
71.9831 € *
Available in 5 Days: 11 pcs. - if ordered today
Total Price:
71.98 € *
Price list
Quantity
Price per unit*
1 pcs.
71.9831 €
2 pcs.
69.9244 €
5 pcs.
67.9847 €
10 pcs.
66.1402 €
*incl. VAT plus shipping costs
Subject to prior sale

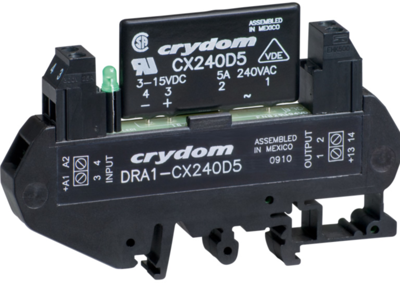

Solid state relay, DRA1-CX240D5-B, CRYDOM
Solid state relay, DIN Rail Mount 10mm, 280VAC/5A, 3-15VDC In, Zero Cross,NC.
Features
- 10 mm Single Channel DIN Rail Mount SSR Assembly
- Cage style screw terminals for easy connection
- Fits standard 35 mm DIN rail
- Includes LED Status indicator (DC control only)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5 A | |
| Voltage | 3-15 VDC | |
| Control Voltage | 280 VAC | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Switching Mode | zero voltage switching | |
| Assembly | DIN rail | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
