CXE240D5 | CRYDOM
Solid state relay, 15-32 VDC, zero voltage switching, 12-280 VAC, 5 A, PCB mounting, CXE240D5
Unit Price (€ / pc.)
27.1915 € *
Available: 1 pcs.
Available in 5 Days: 96 pcs. - if ordered today
Total Price:
27.19 € *
Price list
Quantity
Price per unit*
1 pcs.
27.1915 €
10 pcs.
25.5255 €
25 pcs.
24.0380 €
50 pcs.
22.7290 €
*incl. VAT plus shipping costs
Subject to prior sale

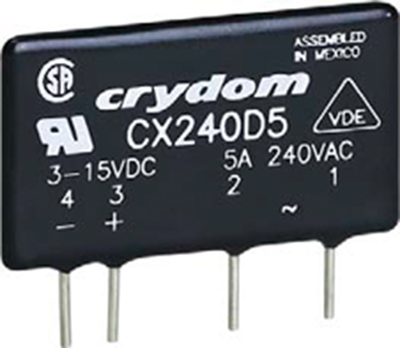

Solid state relay, CXE240D5, CRYDOM
The CXE240D5 has a SCR output with 5 Amps @ 280 VAC ratings and a high surge current capability in a small package. Available with a DC input and Zero Voltage Turn-On output, it is suitable for a very broad range of applications such as: heating control, motor switching, lighting control, vending machines, medical equipment, HVAC and appliances among many others.
Features
- Standard SIP package
- Back-to-back SCR output for heavy industrial loads
- UL, CSA and VDE certified, CE compliant to EN60950-1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5 A | |
| Voltage | 12-280 VAC | |
| Control Voltage | 15-32 VDC | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Switching Mode | zero voltage switching | |
| Assembly | PCB mounting | |
| LED display | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
