CTRD6025 | CRYDOM

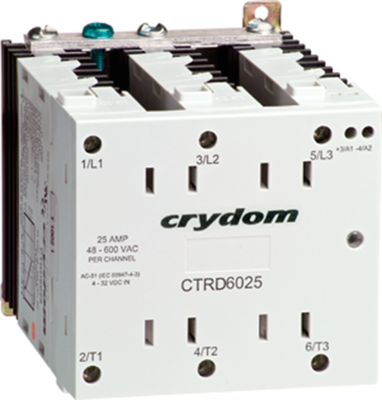

Solid state relay, 4-32 VDC, zero voltage switching, 48-600 VAC, 25 A, DIN rail, CTRD6025
3-phase solid-state relays, type Crydom CTR.
For rail mounting, LED status display; Output current/voltage per channel: 25 A/600 VAC. Peak reverse voltage: 1200 V. Degree of protection: IP 20. Operating temperatures CTRC/CTRD: –20 to +60 °C/–20 to +80 °C. Certifications: UL. Dimensions: 123.4 x 90 x 91.2 mm.
Technical attributes (type, control voltage, version): CTRD6025, 4.0 to 32 VDC, zero-voltage switching
LED display | Yes | |
Assembly | DIN rail | |
Rated current | 25 A | |
Switching Mode | zero voltage switching | |
Voltage V RRM (peak reverse voltage) | 1.2 kV | |
Voltage | 48-600 VAC | |
Control Voltage | 4-32 VDC |
Country of origin | MX |
Customs tariff number | 85364900 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
