CL240D10C | CRYDOM
Solid state relay, 24-280 VAC, zero voltage switching, 3-32 VDC, 10 A, PCB mounting, CL240D10C
Unit Price (€ / pc.)
61.1541 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
122.31 € *
Price list
Quantity
Price per unit*
2 pcs.
61.1541 €
9 pcs.
57.8578 €
18 pcs.
56.3941 €
25 pcs.
55.1684 €
*incl. VAT plus shipping costs
Subject to prior sale

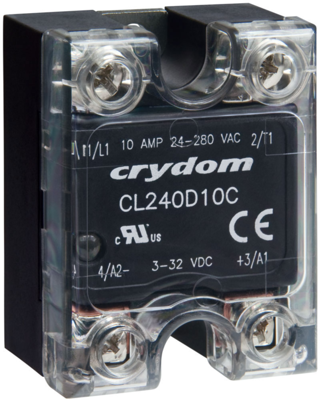

Solid state relay, CL240D10C, CRYDOM
Solid state relay with improved SEMS screw and washer. It features a redesigned housing with anti-rotation barriers.
Features
- LED status indicator
- EMC Compliant to Level 3
- Epoxy free design
- Triac output
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| Voltage | 3-32 VDC | |
| Control Voltage | 24-280 VAC | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Switching Mode | zero voltage switching | |
| Assembly | PCB mounting | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
