43-01000 | CONEC

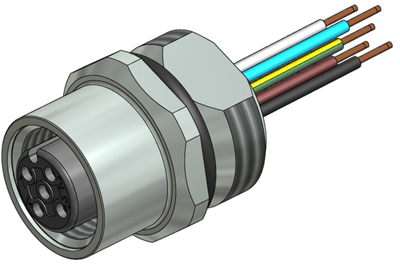

Panel socket, M12, 4 pole, strand connection, screw locking, straight, 43-01000
Order No.: 74F554
EAN: 4099891165444
MPN:
43-01000
SAL-12-FK4-0,5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.7568 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
12.76 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7568 €
10 pcs.
11.4359 €
50 pcs.
10.6981 €
100 pcs.
10.0555 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor/actuator cable, 43-01000, CONEC
Sensor/actuator cables, made up, 0.5 m, 4, M12 flanged socket, straight.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.5 m, PVC | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
