43-00116 | CONEC

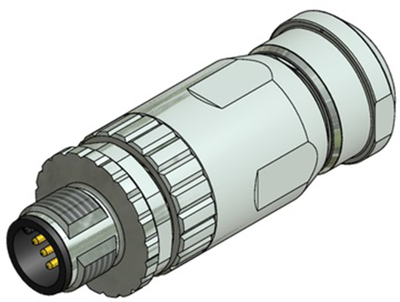

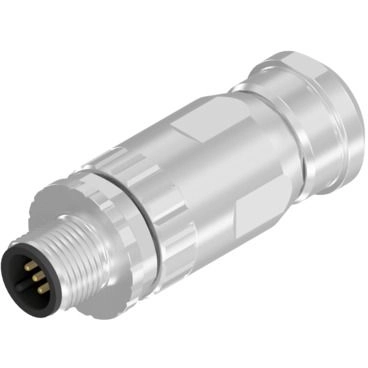

Plug, M12, 5 pole, screw connection, screw locking, straight, 43-00116
Order No.: 74F553
EAN: 4099889704075
MPN:
43-00116
Unit Price (€ / pc.)
18.3260 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
18.33 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3260 €
5 pcs.
17.3740 €
10 pcs.
16.2554 €
25 pcs.
14.8274 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 43-00116, CONEC
Features
- Screw connector
- Pollution degree: 3/2
- Material contact: Copper alloy
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| Orientation | straight | |
| Additional parts | equipped | |
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Product type | plug | |
| Coding | A | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Thread size | M12 | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
