43-00115 | CONEC

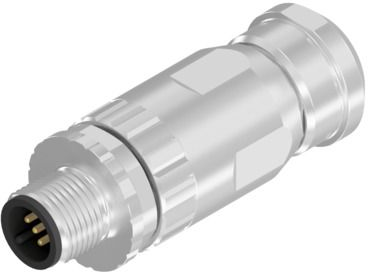

Plug, M12, 4 pole, screw connection, screw locking, straight, 43-00115
Order No.: 74F552
EAN: 4099889704068
MPN:
43-00115
Unit Price (€ / pc.)
16.9813 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
16.98 € *
Price list
Quantity
Price per unit*
1 pcs.
16.9813 €
5 pcs.
16.1007 €
10 pcs.
15.0654 €
25 pcs.
13.7326 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 43-00115, CONEC
Features
- Screw connector
- Pollution degree: 3/2
- Material contact: Copper alloy
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Coding | A | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP67 | |
| Contact connection | screw connection | |
| Product type | plug | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
