43-00102 | CONEC

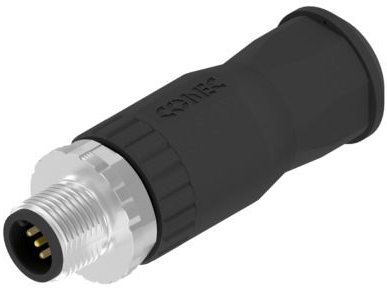

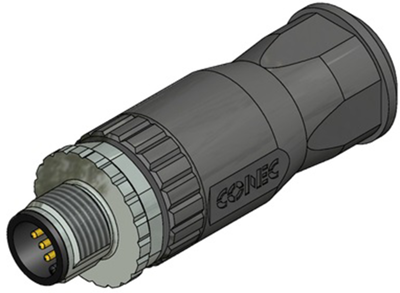

Plug, M12, 5 pole, screw connection, screw locking, straight, 43-00102
Order No.: 74F547
EAN: 4099889704013
MPN:
43-00102
Unit Price (€ / pc.)
7.8183 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
625.46 € *
Price list
Quantity
Price per unit*
80 pcs.
7.8183 €
160 pcs.
7.4613 €
400 pcs.
7.0924 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 43-00102, CONEC
CONEC circular connector, with insulation resistance 100 MΩ and temperature range -30 to +85 °C
Technical Data
- Thread size: M12
- Assembly: Cable assembly
- Type of locking: Screw locking
- Degree of protection (IP): IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Product type | plug | |
| Contact connection | screw connection | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Thread size | M12 | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
