42-01001 | CONEC

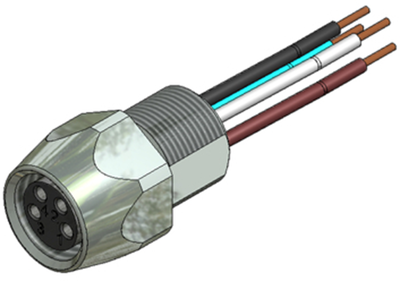

Panel socket, M8, 4 pole, strand connection, screw locking, straight, 42-01001
Order No.: 74F516
EAN: 4099891165437
MPN:
42-01001
SAL-8-FK4-0,2
Unit Price (€ / pc.)
8.6275 € *
Available: 63 pcs.
Total Price:
8.63 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6275 €
10 pcs.
8.1872 €
20 pcs.
7.7945 €
50 pcs.
7.3185 €
80 pcs.
6.9020 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor/actuator cable, 42-01001, CONEC
Sensor/actuator cables, made up, 0.2 m, 4, M8 flanged socket, straight.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.2 m, PVC | |
| Pin number | 4 pole | |
| Thread size | M8 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
