165X17329XE | CONEC

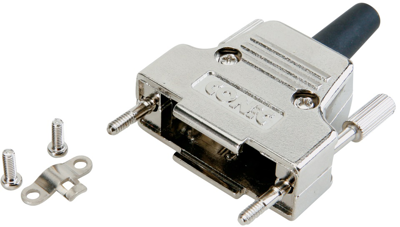

D-Sub connector housing, size: 3 (DB), straight 180°, cable Ø 7 mm, zinc die casting, silver, 165X17329XE
Order No.: 74F408
EAN: 4099889814118
MPN:
165X17329XE
Unit Price (€ / pc.)
5.7715 € *
Available: 4 pcs.
Total Price:
5.77 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7715 €
10 pcs.
5.3550 €
25 pcs.
4.9980 €
50 pcs.
4.5458 €
*incl. VAT plus shipping costs
Subject to prior sale
Cap for D-SUB, 165X17329XE, CONEC
Cap for D-SUB connector for 25-pin D-SUB
Technical Data
- Colour: silver
- Type of locking: Locking Screw 4-40 UNC
- Shell Material: Zinc Die Cast
- Cable diameter: 7 mm
- Cable Outlet: straight
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell size | 3 (DB) | |
| Cable Outlet | straight 180° | |
| Cable diameter | 7 mm | |
| Shell Material | zinc die casting | |
| Type of locking | locking screw 4-40 UNC | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84735080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
