165X14539XE | CONEC

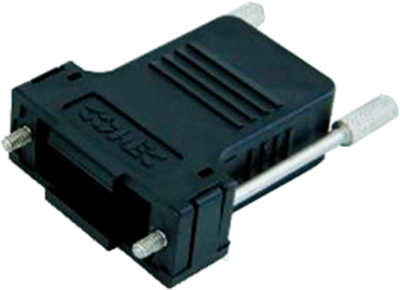

D-Sub connector housing, size: 4 (DC), straight 180°, cable Ø 15 mm, plastic, black, 165X14539XE
Order No.: 55F5690
EAN: 4099889813555
MPN:
165X14539XE
Unit Price (€ / pc.)
5.1884 € *
Standard delivery time from the manufacturer is: On Request
Cable housings for combination sub-D connectors, type 165X.
With enlarged interior to provide sufficient space for high-voltage contacts and/or coax contacts; Material: polyester, UL 90 V-0. Color: black. Operating temperatures: –33 °C to +90 °C.
Technical attributes (type, number of poles, combination sub-D housing size, thread for slotted screws): 14539XE, 37-pole, size 4, M 3
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell size | 4 (DC) | |
| Cable Outlet | straight 180° | |
| Cable diameter | 15 mm | |
| Shell Material | plastic | |
| Type of locking | locking screw M3 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
