6STD37SAM99B70X | CONEC

D-Sub socket, 37 pole, standard, equipped, straight, solder cup, 6STD37SAM99B70X

Order No.: 49F3240
EAN: 4099889805451
MPN:
6STD37SAM99B70X

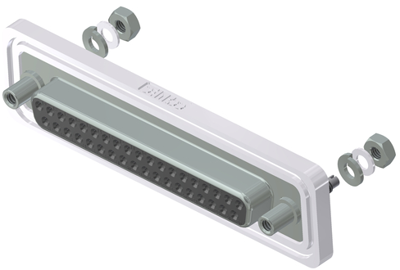

6STD37SAM99B70X CONEC D-Sub Connectors Image 1

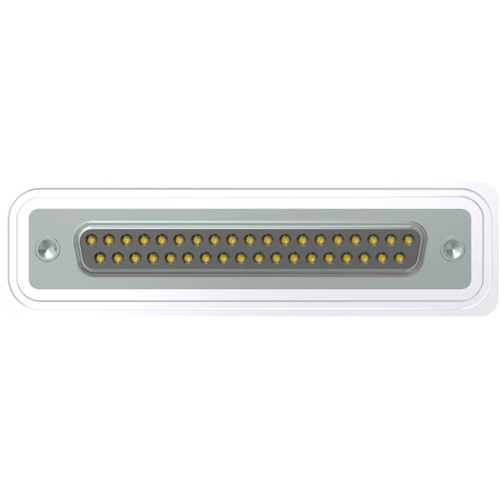

6STD37SAM99B70X CONEC D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
34.8551 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
34.86 € *
Price list
Quantity
Price per unit*
1 pcs.
34.8551 €
2 pcs.
32.6060 €
5 pcs.
30.6306 €
10 pcs.
28.4767 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub socket, 6STD37SAM99B70X, CONEC

Features

  • Metal shell: Copper alloy
  • Contact material: Copper alloy
  • With O-ring
  • With threaded lock and 4-40 UNC stud bolt
Technical specifications
Filter Property Value
Additional parts equipped
Pin number 37 pole
Pole image standard
Type of locking threaded bolts 4-40 UNC
Attachment (rear panel) spacer bolt 4-40 UNC
Assembly straight
Contact connection solder cup
Version socket header
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
