3017W2SAM99A30X | CONEC

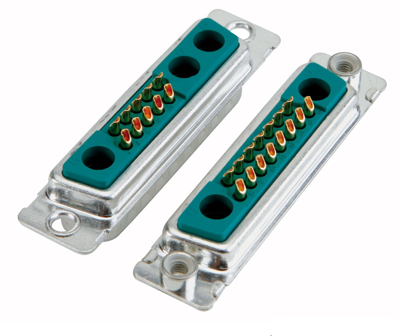

D-Sub socket, 19 pole, 17W2, partially equipped, straight, solder cup, 3017W2SAM99A30X
Order No.: 74F503
EAN: 4099889809497
MPN:
3017W2SAM99A30X
Unit Price (€ / pc.)
6.1047 € *
Available: 2 pcs.
Total Price:
6.10 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1047 €
10 pcs.
5.6763 €
25 pcs.
5.2955 €
50 pcs.
4.8195 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket Header, 3017W2SAM99A30X, CONEC
Combination D-Sub, Socket strip, 17W2, Solder cup, lower operating temperature -55 °C, electric strength signal 1000 V, protection class IP20
Technical Data
- Assembly: Cable connection
- Pin number: 19-pole
- Pole image: Mixed Layout: 17W2
- Additional parts: Partially equipped
- Contact connection: Solder cup
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| Assembly | straight | |
| Pole image | 17W2 | |
| Attachment (rear panel) | through hole | |
| Additional parts | partially equipped | |
| Pin number | 19 pole | |
| Version | socket header | |
| Type of locking | threaded insert 4-40 UNC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
