164A19939X | CONEC

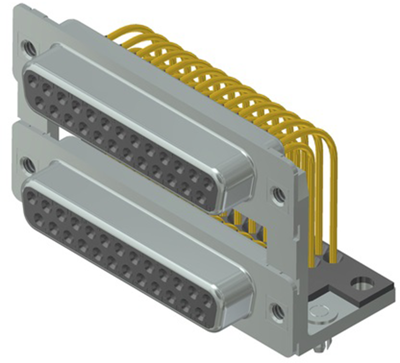

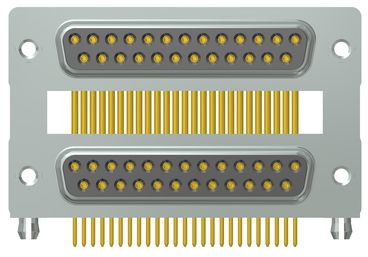

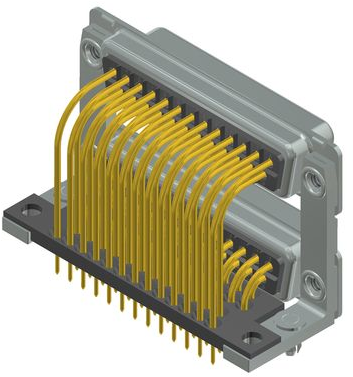

D-Sub socket, 25 pole, dual port, equipped, socket header/socket header, angled, solder pin, 164A19939X
Order No.: 74F350
EAN: 4099889809213
MPN:
164A19939X
Unit Price (€ / pc.)
31.7611 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
31.76 € *
Price list
Quantity
Price per unit*
1 pcs.
31.7611 €
2 pcs.
29.7143 €
5 pcs.
27.9055 €
10 pcs.
25.9420 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub Dual Port Connector, 164A19939X, CONEC
D-SUB Dual Port with a insulator material PBT GF UL 94 V-0, black, signal contact material copper alloy, dielectric with standing voltage signal: 1000 V
Technical Data
- Rated current: 7.5 A
- Insulator color: Black
- Termination signal: Solder Pin
- Degree of protection IP: IP20
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version (down) | socket header | |
| Additional parts | equipped | |
| Verison (up) | socket header | |
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | dual port | |
| Attachment (rear panel) | PCB clip | |
| Assembly | angled | |
| Data contacts (top) | 25 | |
| Version | socket header | |
| Contact connection | solder pin | |
| Pin number | 25 pole | |
| Data contacts (bottom) | 25 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
